P-050A-048-100P-AL-N-080 - Datasheet

MBA

Category Information

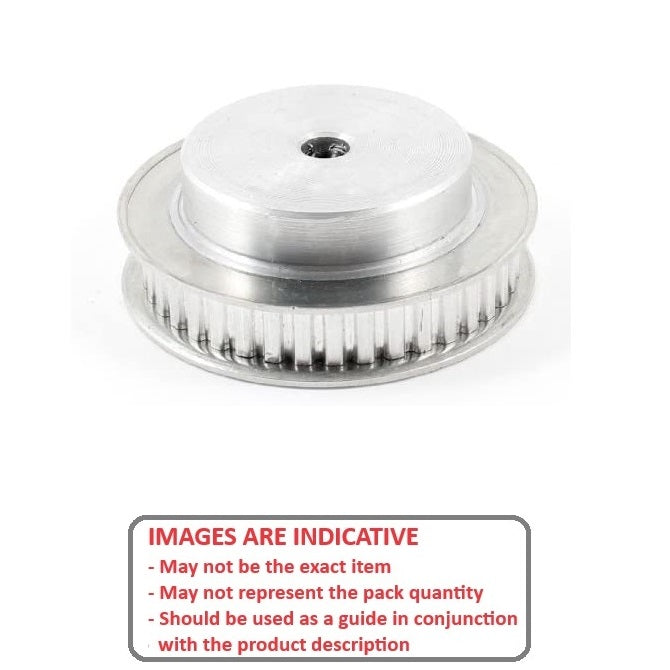

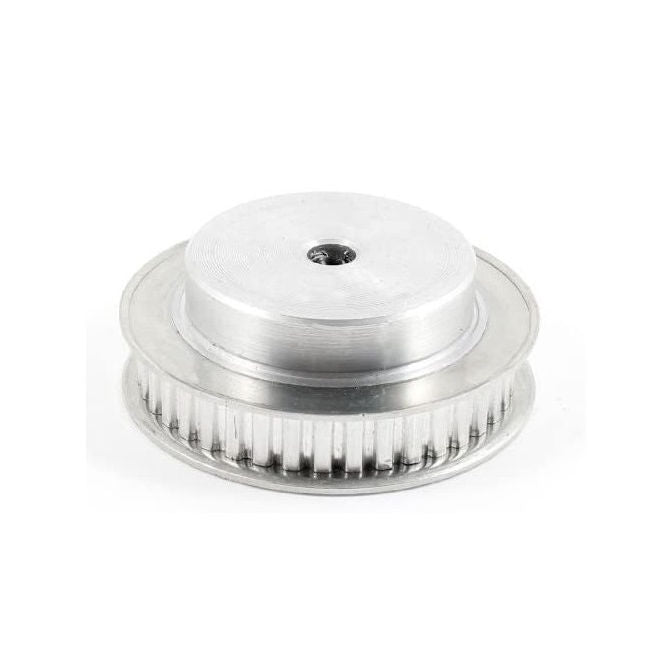

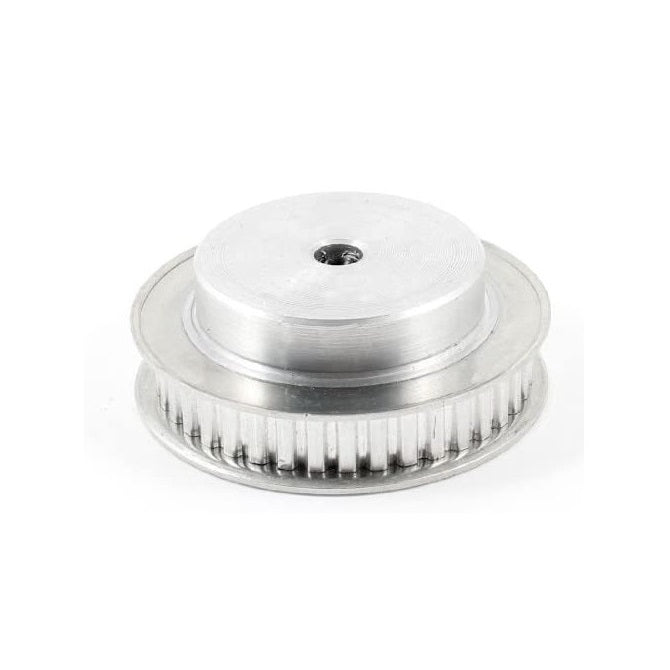

Pulleys - Metric Timing - 5.000mm Pitch - AT5 - 10mm Wide

10mm Wide AT5 5.000mm Pitch Metric Timing Pulleys. Timing pulleys to suit AT5 Series belts

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • Steel Flanges
  • Hub is unthreaded, you will need to drill and tap with your required locking screw size

Product Data

  • Number of Teeth : 48
  • Max Belt Width 10.00 mm
    (Equiv. 0.394 in.)
  • Bore (d) 8.000 mm
    (Equiv. 0.315 in.)
  • Bore Type Plain
  • Locking Type None

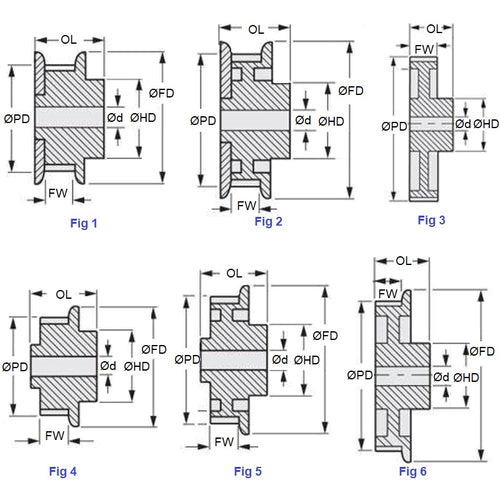

  • Type 3
  • Pitch Dia. (PD) 76.36 mm
  • Overall Length 21.0 mm
  • Hub Diameter (HD) 50.0
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Gates 21AT5-48-0
  • 3709N32
  • 21AT5480
