ACE6506RS - Datasheet

ACE

Category Information

Shock Absorbers - Soft Contact Self-Compensating

Soft Contact Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 48.5 mm
    • Thread (T) 1-12
    • Length (A/F) 139.95 / 96.52 mm
    • Shaft Diameter (D) 9.65 mm
    • Effective Weight Soft Contact 136.08 - 326.59 KG
    • Effective Weight Self-Compen 90.72 - 362.87 KG
    • Wrench Flat (EE) 22.23 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-6506
      • ACE6506
      View full details

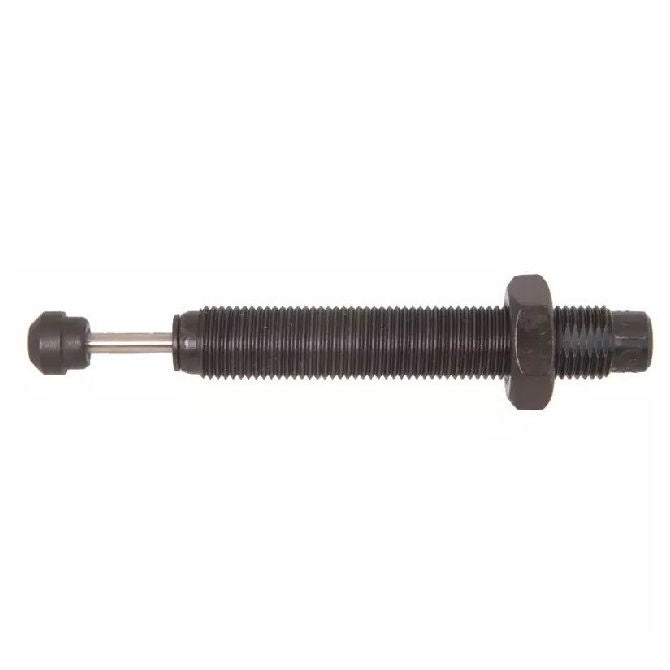

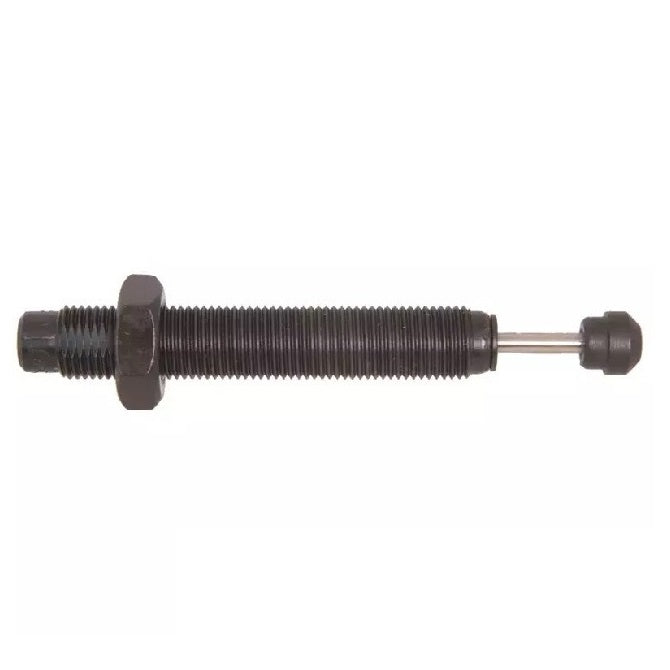

      ACE6506RSDiagramACE6506RSImage
