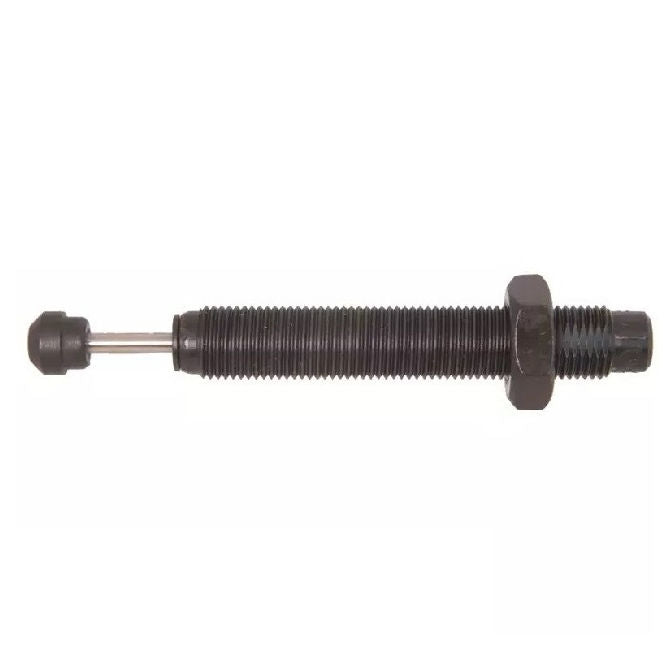

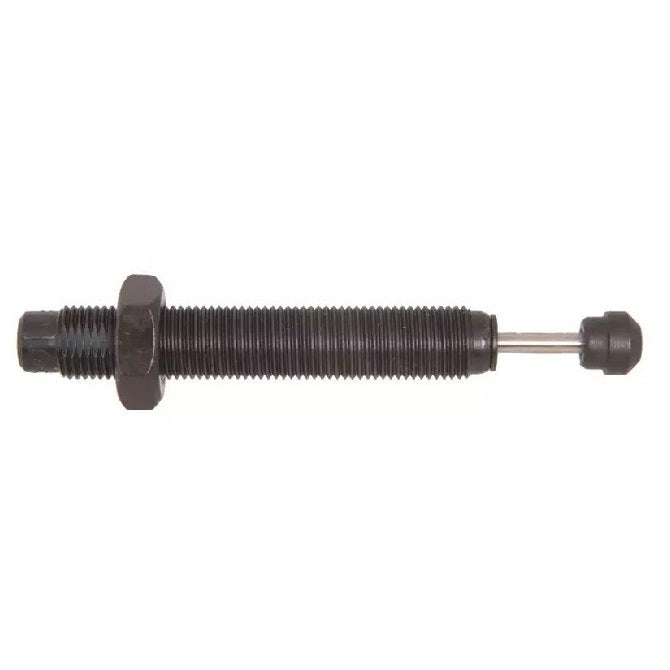

ACE6509RS - Datasheet

ACE

Category Information

Shock Absorbers - Soft Contact Self-Compensating

Soft Contact Self-Compensating Shock Absorbers. This is the main category in this series

    Product Data

    • Stroke : 48.5 mm
    • Thread (T) 1-12
    • Length (A/F) 139.95 / 96.52 mm
    • Shaft Diameter (D) 9.65 mm
    • Effective Weight Soft Contact 2721.55 - 5669.90 KG
    • Effective Weight Self-Compen 1814.37 - 6350.29 KG
    • Wrench Flat (EE) 22.23 mm
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-6509
      • ACE6509
