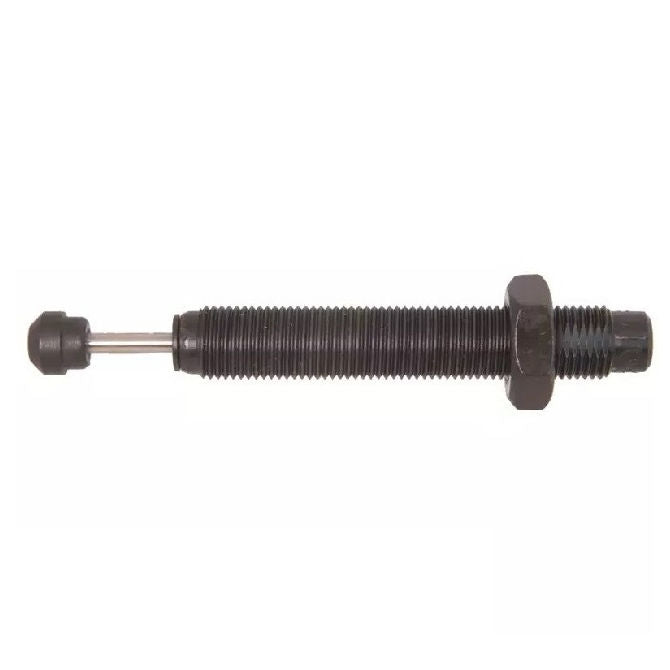

ACE6508RS - Datasheet
ACE
Category Information
Shock Absorbers - Soft Contact Self-CompensatingSoft Contact Self-Compensating Shock Absorbers. This is the main category in this series
Product Data
- Stroke
:
48.5
mm
(Equiv. 1.909 in.) - Thread (T) 1-12
- Length (A/F)
139.95 / 96.52
mm
(Equiv. 5.51 in.) - Shaft Diameter (D) 9.65 mm
- Effective Weight Soft Contact 1133.98 - 2358.68 KG
- Effective Weight Self-Compen 771.11 - 2630.84 KG
- Wrench Flat (EE) 22.23 mm
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ACE6508
- ACE-6508
