ACE33503RS - Datasheet

ACE

Category Information

Shock Absorbers - Full Threaded - Soft Contact Self-Compensating

Soft Contact Self-Compensating Full Threaded Shock Absorbers. This is the main category in this series

    Product Data

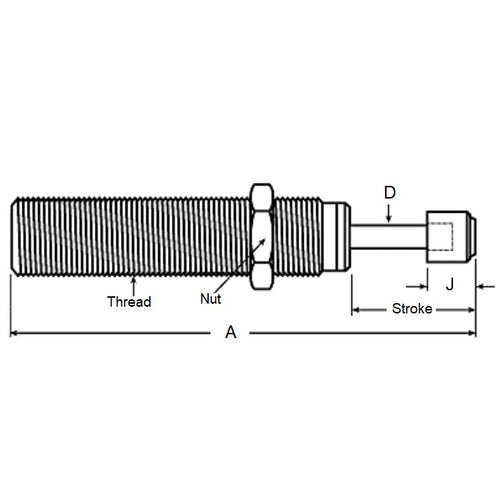

    • Stroke : 48.5 mm
    • Thread (T) 1.1/4-12 UNF (31.75mm)
    • Length (A) 188.98 mm
    • Shaft Diameter (D) 9.53 mm
    • Effective Weight 208.65 - 834.61 KG
    • More Information For more information please contact us.
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • Reid Tool® ACE-3350-3
      • ACE33503
      View full details

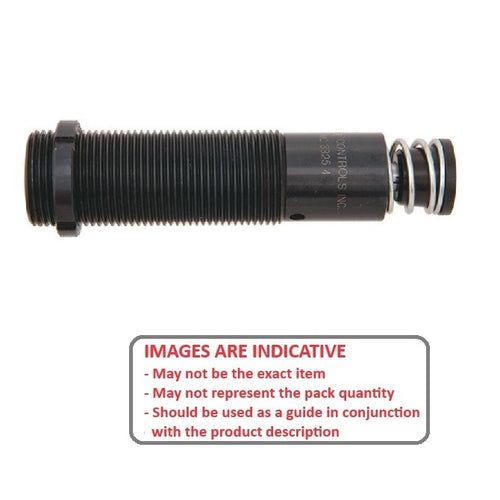

      ACE33503RSDiagramACE33503RSImage
