FRB-90RS - Datasheet
MBA
Category Information

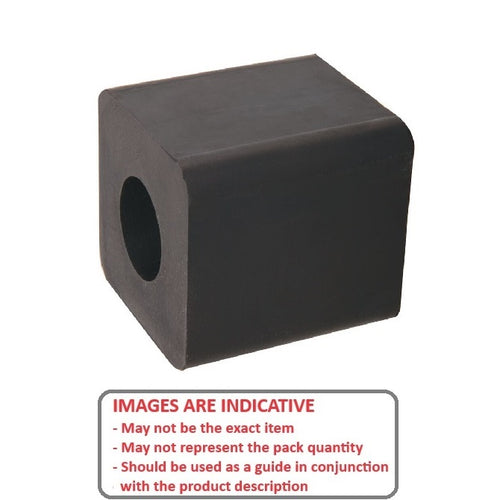

Bumpers - Square and Rectangular - StandardStandard Square and Rectangular Bumpers. With drilled and counterbored holes for mounting. Neoprene only, no steel plate.
Product Data

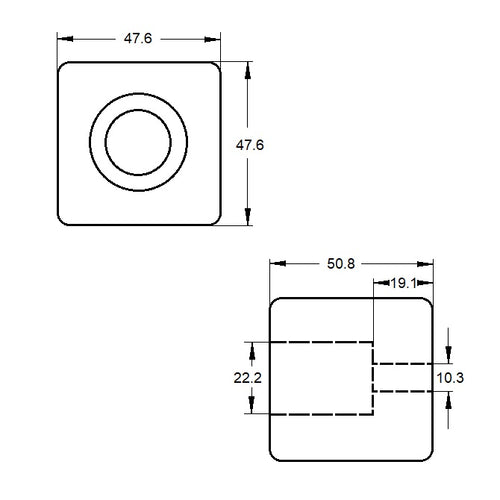

- Length
:
47.625
mm
(Equiv. 1.875 in.) - Width
50.800
mm
(Equiv. 2 in.) - Height
47.625
mm
(Equiv. 1.875 in.) - Hole Diameter 22.225 mm
- Hole Depth 31.750
- Hardness 80A
- Material Neoprene Rubber 80A
