CCF150RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 47.625 mm
      (Equiv. 1.875 in.)
    • Overall Width (D) 26.988 mm
      (Equiv. 1.063 in.)
    • Bore (B) 12.700 mm
      (Equiv. 0.5 in.)
    • Width (C) 25.400 mm
    • E 31.750 mm
    • Dynamic Load Rating 2896.187 kg
    • Static Load Rating 7184.903 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 6831K48
      • CCF150
      • CCF-150
      View full details

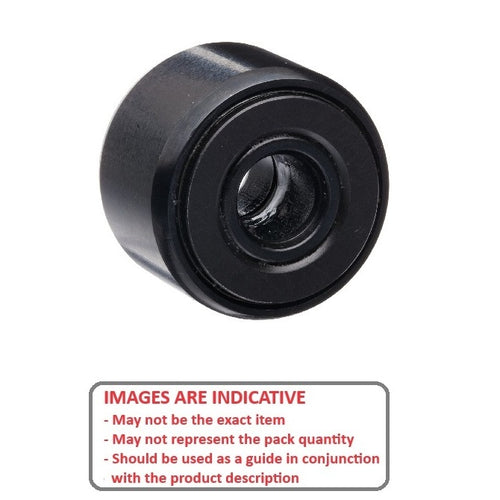

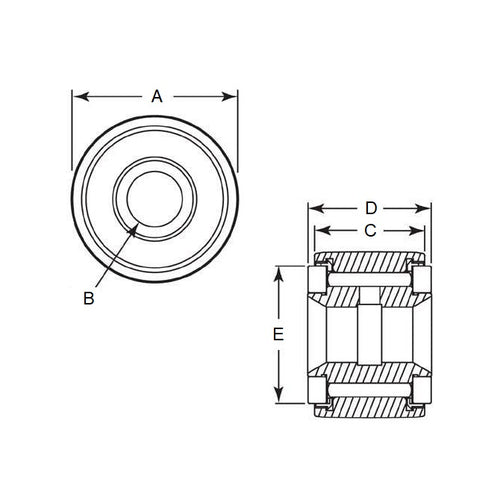

      CCF150RSDiagramCCF150RSImage
