Miniature Bearings Australia - MBA Minibearings
Miniature Bearings Australia

CCF920RS - Datasheet

MBA

Category Information

Roller Followers - Crown

Crown Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 47.625 mm
      (Equiv. 1.875 in.)
    • Overall Width (D) 26.975 mm
      (Equiv. 1.062 in.)
    • Bore (B) 12.700 mm
      (Equiv. 0.5 in.)
    • Width (C) 25.400 mm
    • Crown Radius 20.000 deg
    • E 31.750 mm
    • Dynamic Load Rating 2896.187 kg
    • Static Load Rating 7184.903 kg
    • Material Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 3689K21
      • CCF-920
      • CCF920
      View full details

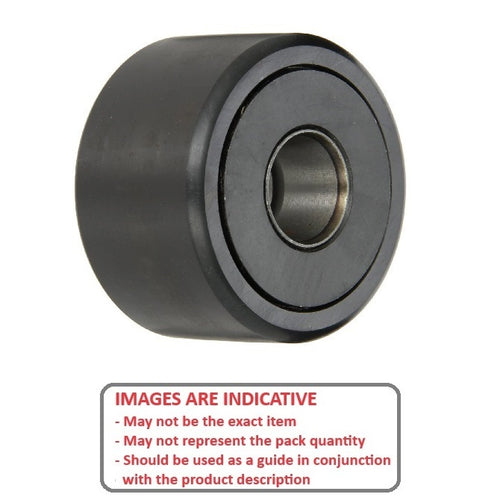

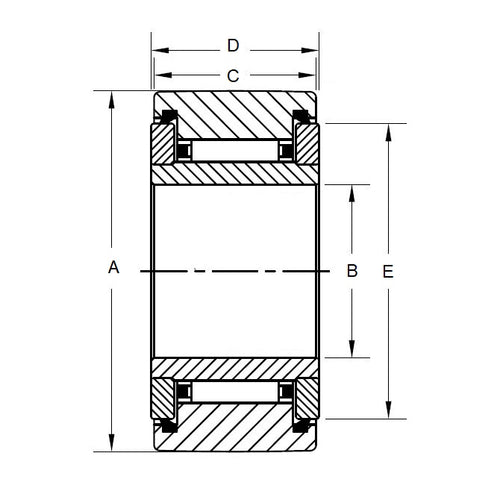

      CCF920RSDiagramCCF920RSImage
