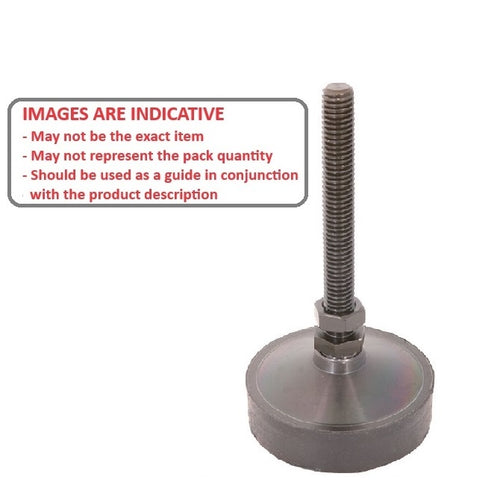

MLM-127C-102-C-AVLD - Datasheet
MBA
Category Information
Mounts - Levelling Studded - Anti-VibrationAnti-Vibration Levelling Studded Mounts. Levelling adjusters. Specifically designed to provide low frequency vibration isolation, leveling and shock attenuation for electronics and machinery.
- An expanded range may be available on special order. Please enquire.
- 15o swivel off centre to adjust to uneven surfaces.
- over 12mm of black neoprene permanently bonded to the base. Neoprene operating temperature -20 to 80 oC.
- Steel parts are zinc plated with black chromate finish.

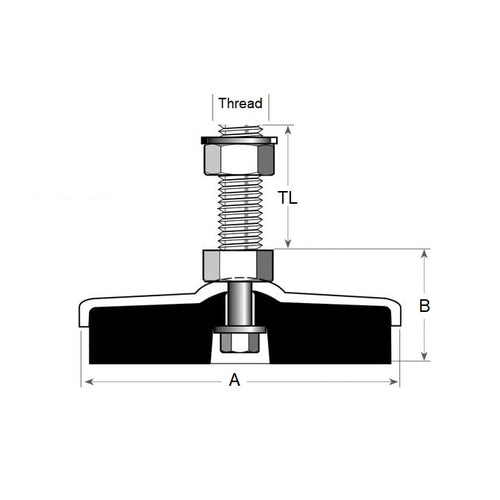

Product Data
- Thread Size (A) : 1/2-13 UNC (12.7mm)
- Base Diameter (D) 76.2 mm
- Foot Height (C) 41.3 mm
- Thread Length (F) 101.6 mm
- Base Height (E) 41.3 mm
- Overall Height 142.9 mm
- Load Rating 47 Kg
- Finish Black Chromate
- Neoprene
- Hex Flats (B) 19.05 mm
- Material Steel
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® AX-10
- MLM0047127C102AV
- AX10
