CP-191-HUB-G-PR-47 - Datasheet
MBA
Category Information

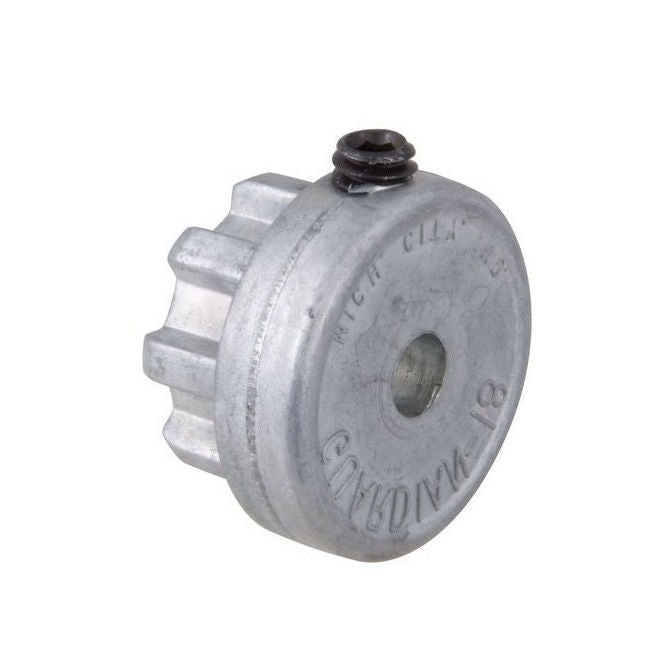

Couplings - Geargrip - Precision HubsPrecision Hubs Geargrip Couplings. Match with sleeves from sleeves category
- An expanded range may be available on special order. Please enquire.
Product Data
- Bore
:
19.050 (Keyed)
mm
(Equiv. 0.75 in.) - Sleeve OD For 46.75 OD Sleeve mm
- Overall Length Assembled When Complete 60.45 mm
- Description Single Hub Only
- Hub Protrusion Assembled 9.652 mm
- Number of Teeth 12 Nr.
- Hub Length 28.956 mm
- Hub Diameter (C) 41.402 mm
- Keyway Size 4.74 x 2.36 mm
Product Compliance and Data
Additional Resources
Cross References
- GU2505
- GU-2505
