CCE-04604-CZY - Datasheet
MBA
Category Information

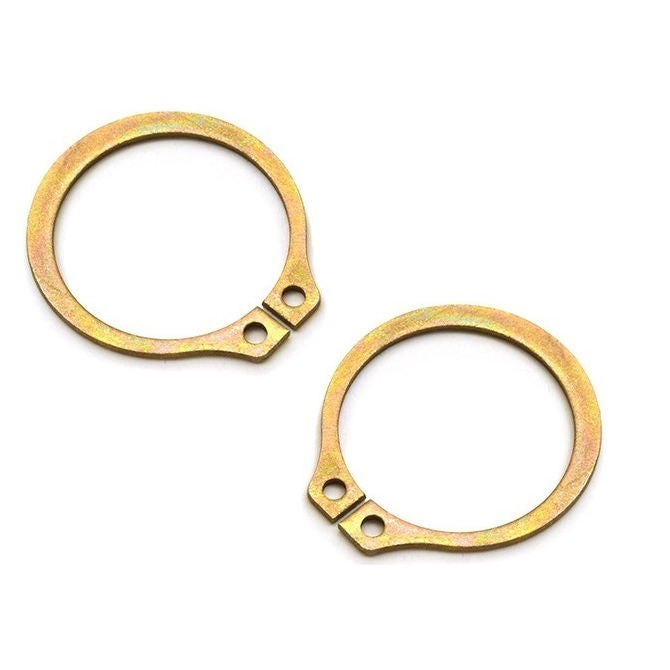

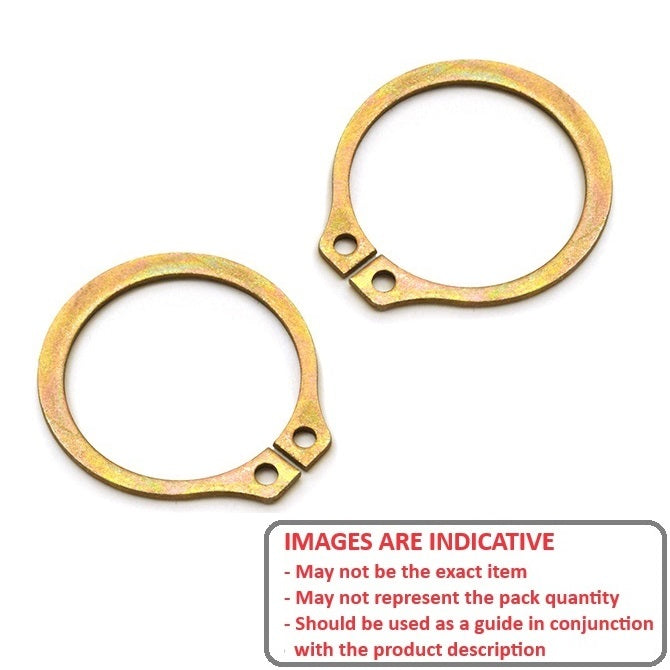

Retaining Rings - External - Circlips - Standard - Zinc PlatedZinc Plated Standard Circlips External Retaining Rings. Imperial and metric DIN471 / D1400 / N1400 / D1460. Retaining rings. Snap Rings (USA).
- An expanded range may be available on special order. Please enquire.
- Zinc plated carbon steel
Product Data
- Shaft Diameter (Ds)
:
46.04
mm
(Equiv. 1.813 in.) - Clip Thickness (T)
1.57
mm
+/- 0.127
(Equiv. 0.062 in.) - Groove Dia. (Dg)
43.40
mm
+/- 0.076
(Equiv. 1.709 in.) - Approx. Loose Circlip ID (A) 42.60 mm
- Groove Width (W) 1.70 mm
- Standard MIL-16624
- Material Carbon Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- 98410A148
- NoCor SH-181-ZD
- SH181ZD
- N14000181AZD
- N1400-0181AZD
