P-030G-045-090FF-AL-E-080 - Datasheet
MBA
Category Information

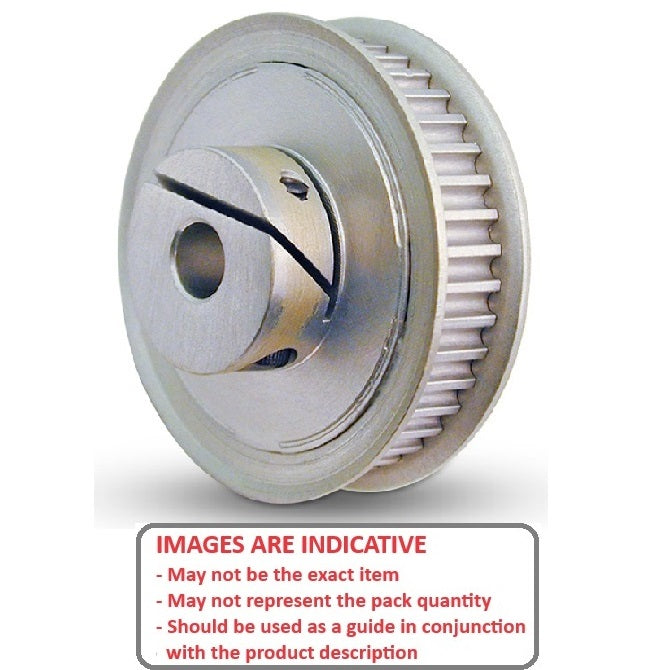

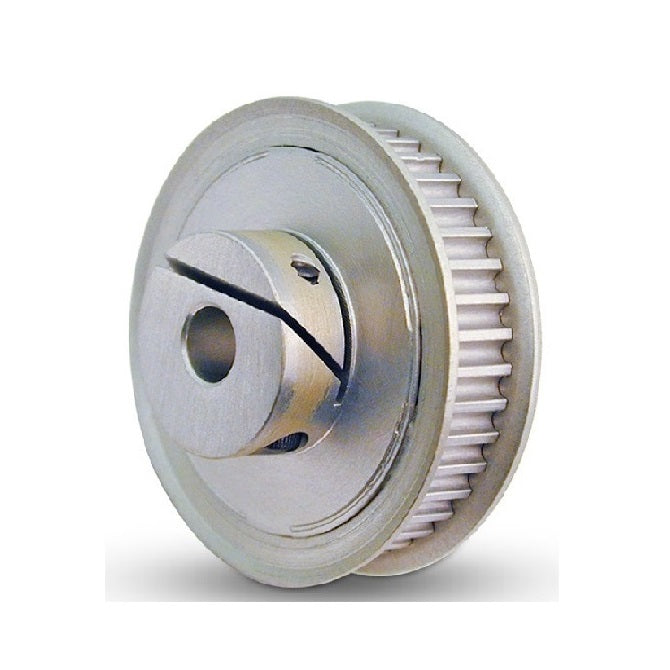

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - EZ-LockEZ-Lock Metallic 9mm Wide GT 3.000mm Pitch Metric Timing. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Aluminium Alloy
- EZ-Lock hub clamps to the shaft with a socket head cap screw
- Cap screw is supplied with the pulley
Product Data
- Number of Teeth : 45
- Max Belt Width
9.00
mm
(Equiv. 0.354 in.) - Bore (d)
8.000
mm
(Equiv. 0.315 in.) - Bore Type Finished
- Locking Type EZ-Lock Hub

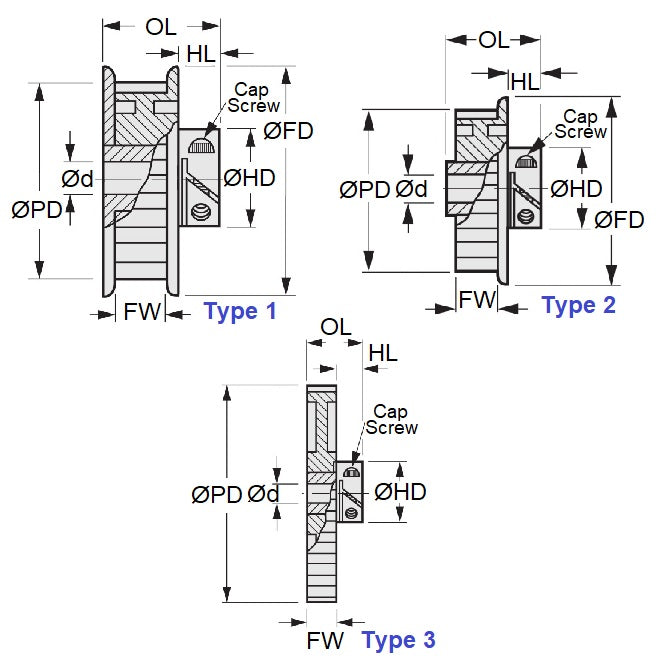

- Type 2
- Pitch Dia. (PD) 42.95 mm
- Flange Diameter (FD) 45.1 mm
- Overall Length 21.4 mm
- Hub Diameter (HD) 19.1
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 45-3P09MIA8
- 453P09MIA8
