COL-04500-073-19-HG-S3 - Datasheet
MBA
Category Information

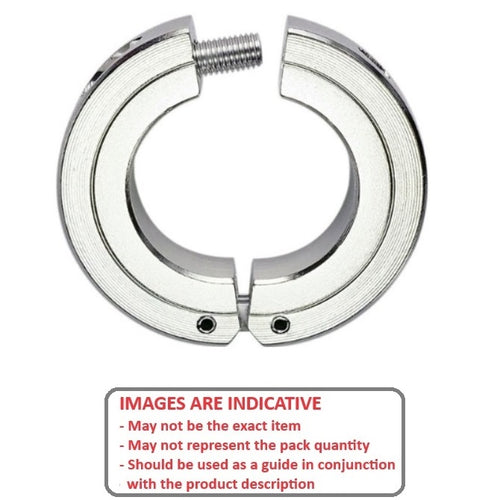

Collars - Shaft - Hinged - Stainless SteelStainless Steel Hinged Shaft Collars. Precision machined. Convenient easy-to-assemble design. 303 Stainless Steel
- Same axial load handling capabilities as standard two piece collars.
- Captive clamp screw eliminates lost screws.
- The collars have a smooth I.D., O.D. & sides with no protruding pins or screws.
- Easily Machinable / Open Completely.
- Non-marring / Use on hardened shafts / Use on tubing / Use on split hubs.
Product Data

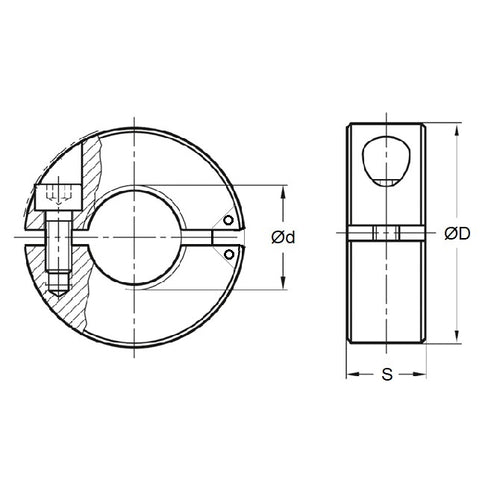

- Suitable Shaft Size (d)
:
45.000
mm
(Equiv. 1.772 in.) - Outside Diameter (D)
73.00
mm
(Equiv. 2.874 in.) - Overall Width (S)
19.0
mm
(Equiv. 0.748 in.) - Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- 5719T19
- 2SM045H
