GE-04500-07200-ST-OH-SP - Datasheet

MBA

Category Information

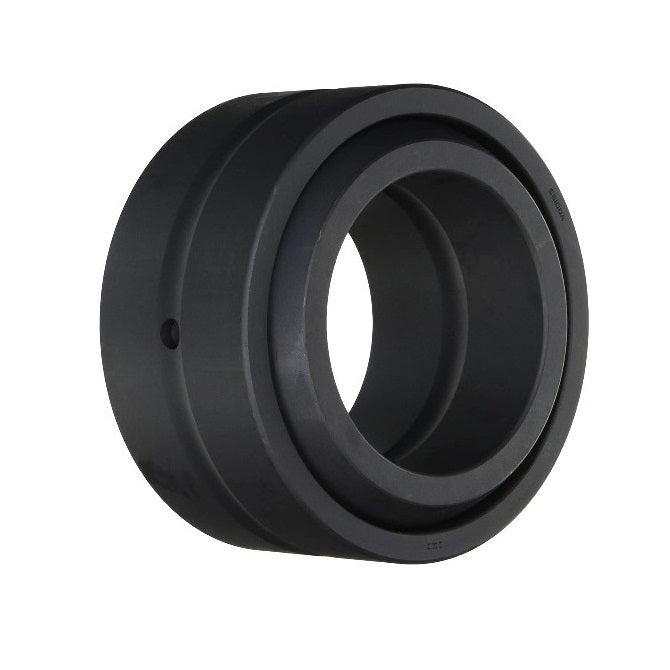

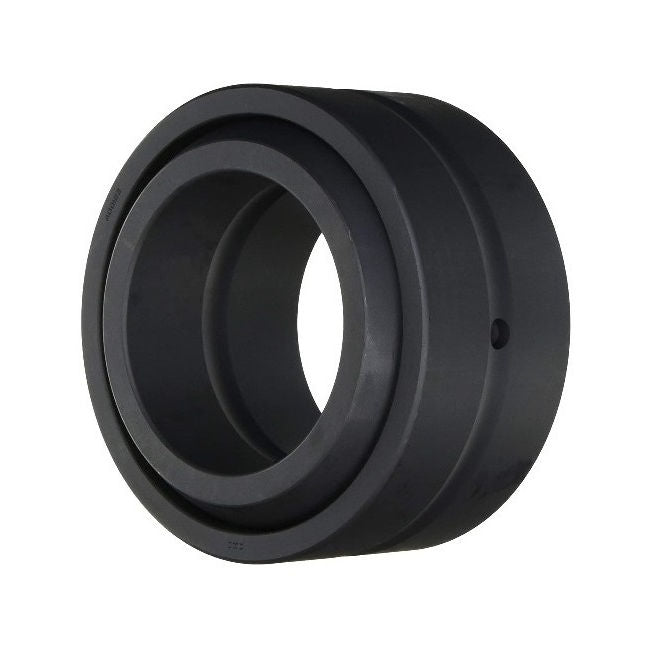

Bushings - Spherical - Steel - With Oil Hole

With Oil Hole Steel Spherical Bushings. Steel spherical plain bearings. Also known as ball bushings.

  • Compensates for axial loads and misalignment.

Product Data

  • Bore (d1) : 45.000 mm
    (Equiv. 1.772 in.)
  • OD (d2) 72.000 mm
    (Equiv. 2.835 in.)
  • Width (B) 36.000 mm
    (Equiv. 1.417 in.)
  • Outer Width (C) 31.00 mm
  • Dynamic Load Capacity 19200 kgf
  • Static Load Capacity 115000 kgf
  • Features Spring and oil Hole on OD
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • IKO SB-457236
    • SB457236
