GE-04500-06800-ST-OH - Datasheet

MBA

Category Information

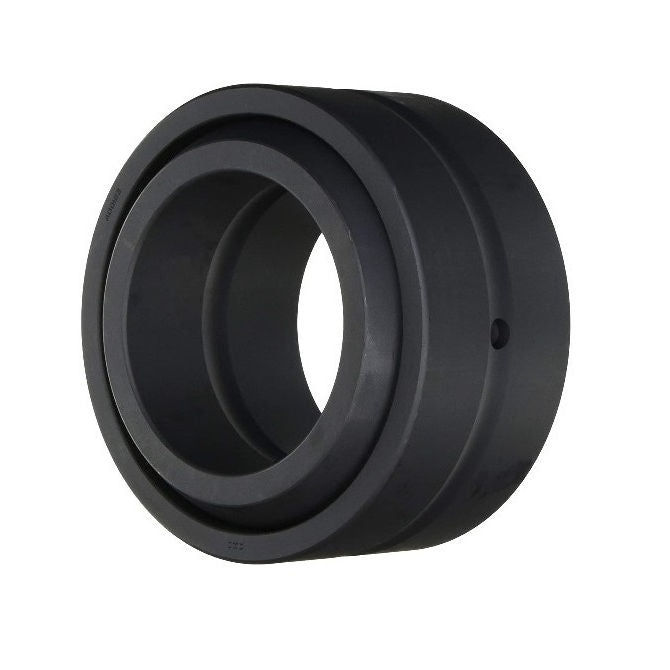

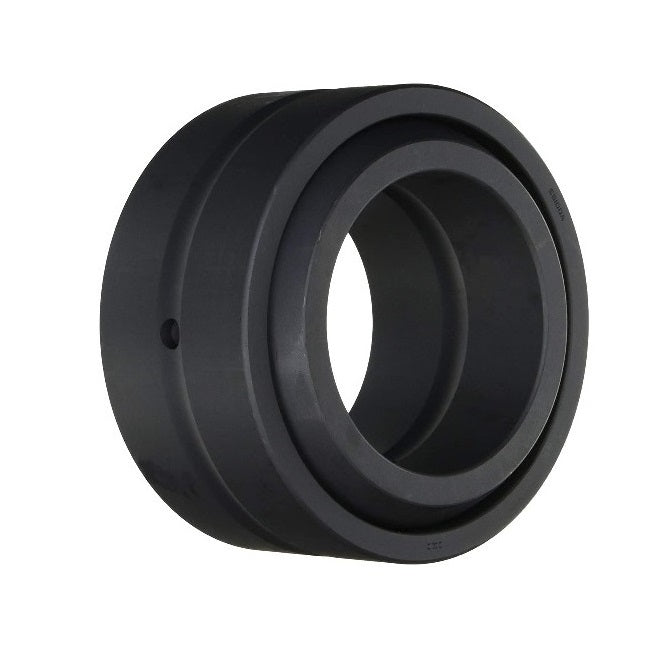

Bushings - Spherical - Steel - With Oil Hole

With Oil Hole Steel Spherical Bushings. Steel spherical plain bearings. Also known as ball bushings.

  • Compensates for axial loads and misalignment.

Product Data

  • Bore (d1) : 45.000 mm
    (Equiv. 1.772 in.)
  • OD (d2) 68.000 mm
    (Equiv. 2.677 in.)
  • Width (B) 32.000 mm
    (Equiv. 1.26 in.)
  • Outer Width (C) 25.00 mm
  • Dynamic Load Capacity 15000 kgf
  • Static Load Capacity 90000 kgf
  • Features No Wiper Seals / With Oil Hole
  • Material Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • IKO GE45ES
    • Nachi GE-45ES
