P-020G-045-030FF-AL-G-060 - Datasheet

MBA

Category Information

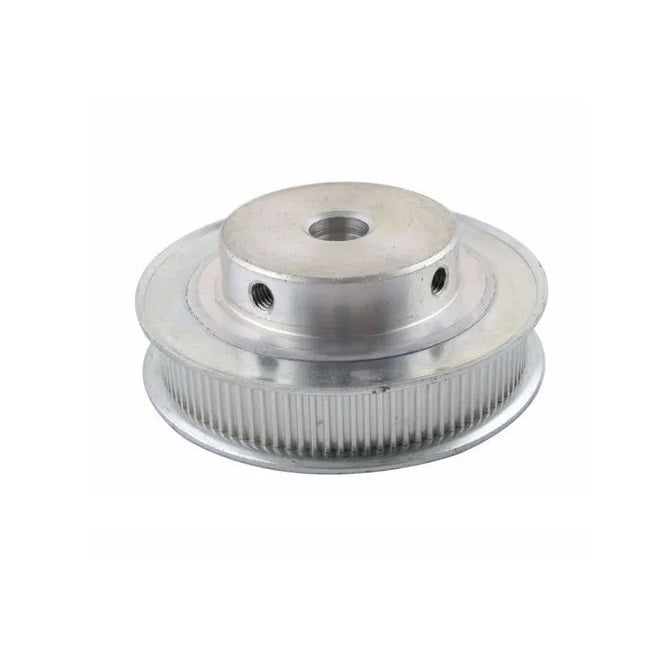

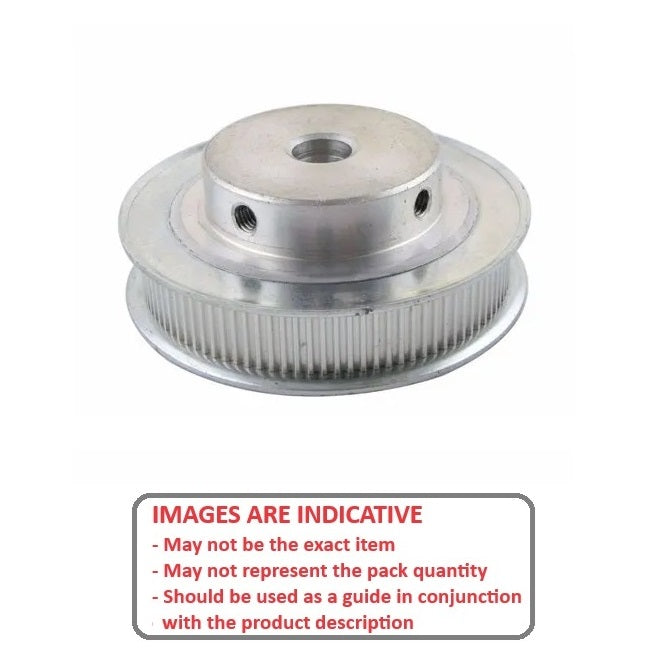

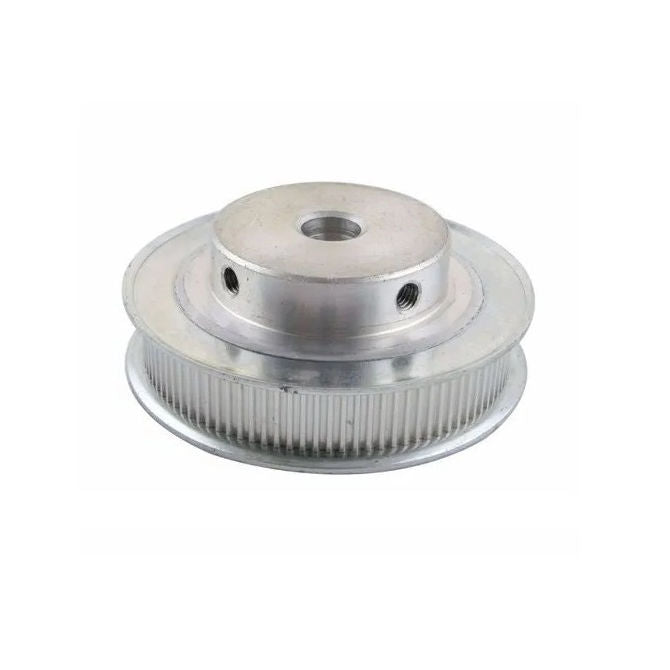

Pulleys - Metric Timing - 2.000mm Pitch - GT - 3mm Wide

3mm Wide GT 2.000mm Pitch Metric Timing Pulleys. Timing Pulleys to suit GT 2mm Pitch Timing Belts.Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Aluminium Alloy
  • Finished Bores with Set Screws

Product Data

Deleted Item. Available while stocks last.

Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

  • Number of Teeth : 45
  • Max Belt Width 3.00 mm
    (Equiv. 0.118 in.)
  • Bore (d) 6.000 mm
    (Equiv. 0.236 in.)
  • Bore Type Finished
  • Locking Type Set Screw

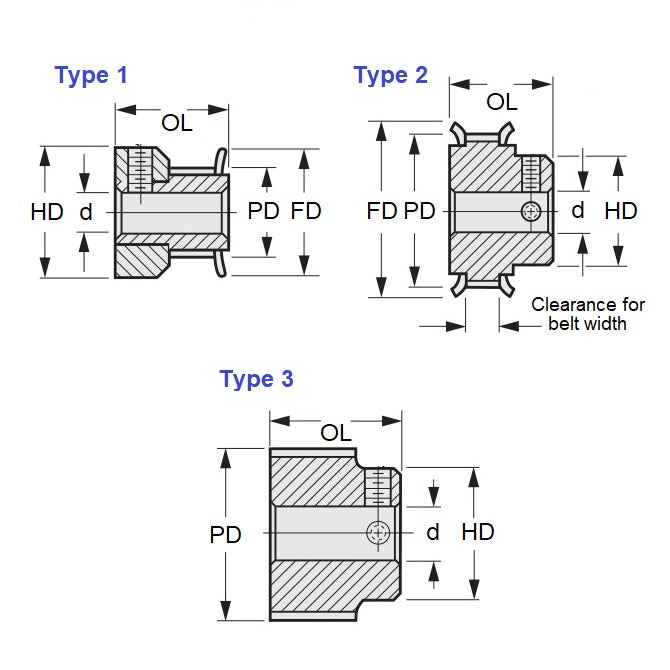

  • Type 2
  • Pitch Dia. (PD) 28.64 mm
  • Flange Diameter (FD) 34.0 mm
  • Overall Length 13.5 mm
  • Hub Diameter (HD) 22.9
  • Material Aluminium
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • A 6A51M045DF0306
  • A6A51M045DF0306
