GR-D32-06-0457-12-S41 - Datasheet
MBA
Category Information

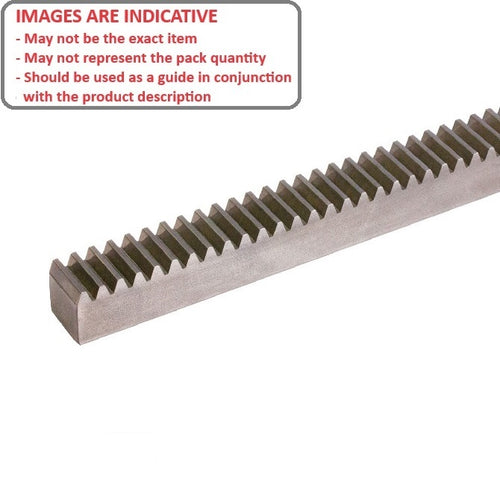

Gears - Rack - Imperial - 32DP - Stainless SteelStainless Steel 32DP Imperial Rack Gears. 20 Degree Pressure Angle. 416 stainless steel. DP stands for Diametrical Pitch imperial sizes.
- Be sure to match the pitch type and tooth angle when selecting rack and spur gears.
- An expanded range may be available on special order. Please enquire.
- 32 DP. Approx 2.49mm between teeth.
- Lengths longer than 1mtr can only be shipped internationally using Express not post. Please do not select post at checkout for long lengths.
Product Data
- Length (L)
:
457.20
mm
(Equiv. 18 in.) - Face Width (fw)
5.842
mm
(Equiv. 0.23 in.) - Height (h)
12.192
mm
(Equiv. 0.48 in.) - Pitch Type 32DP
- Pitch Height (ph) 11.397 mm
- Pressure Angle 20 °
- Precision Precision
- Mounting Holes None
- Shape Rectangular
- Material Stainless Steel AISI 416 Rc 36-42
Product Compliance and Data
Additional Resources
Cross References
- R32-18SS
- R3218SS
- S1811Y-RB-2P
- S1811YRB2P
