MR4-4536 - Datasheet
MBA
Category Information

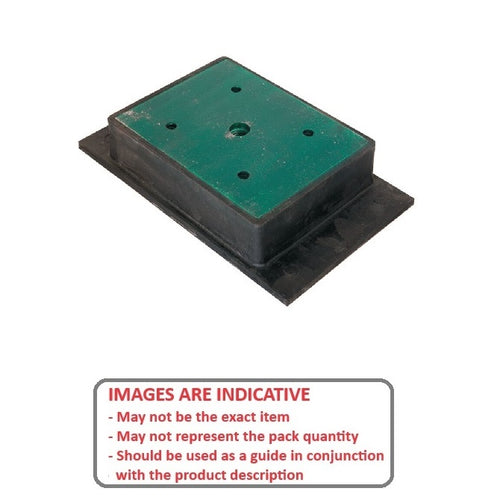

Mounts - Rectangular 4 BoltRectangular 4 Bolt Mounts. Rectangular elastomer component bonded with two steel plates.
- Low installation height provides good stability.
- Effectively isolates against horizontal and vertical vibrations.
- High deflection capacity in horiziontal direction whilst deflection is low in vertical.
- Oil and grease resistant.
- Meets OSHA anchoring standards. Ideal use in presses, blowers, pumps, vibrators, rolling mills, crushers etc.

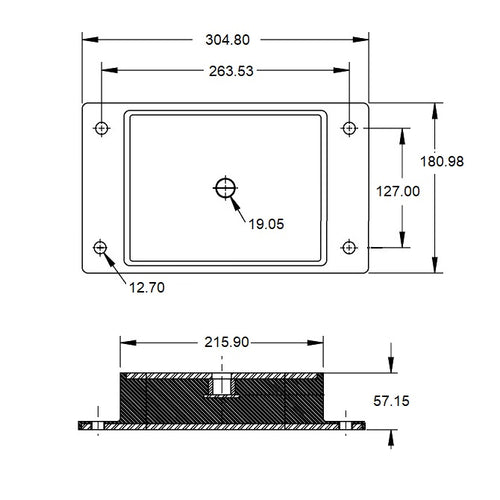

Product Data
- Max Load : 4535.9 Kg
- Length
263.53
mm
(Equiv. 10.375 in.) - Width
180.98
mm
(Equiv. 7.125 in.) - Height 57.15 mm
- Plate Length 215.9 mm
- Plate Width 127.0 mm
- Material Steel and Neoprene
Product Compliance and Data
Additional Resources
Cross References
- VP20
- VP-20
