MBN2-0454-43-1590 - Datasheet

MBA

Category Information

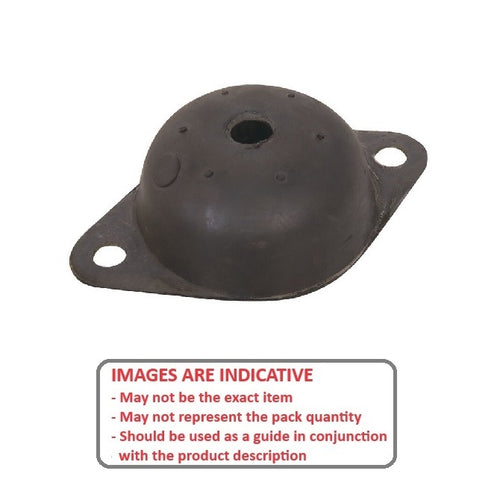

Mounts - Base Neoprene Style 2

Base Neoprene Style 2 Mounts. This is the main category in this series

    Product Data

    • Rated Load : 453.600 kg (lbs)

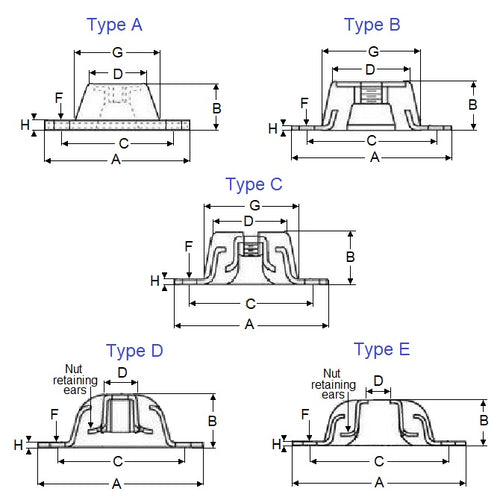

    • Style E
    • Length (A) 158.750 mm
      (Equiv. 6.25 in.)
    • Height (B) 42.863 mm
    • Bolt Centres (C) 127.000 mm
    • D 15.88 mm
    • F 13.49 mm
    • H 3.18 mm
    • 15.875mm Hole (No Thread) Thread
    • Durometer 50
    • Material Neoprene Rubber
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

    Cross References

    • 64875K29
    • KR622
    • KR-62-2
