MAV-454-01-152-Z - Datasheet
MBA
Category Information

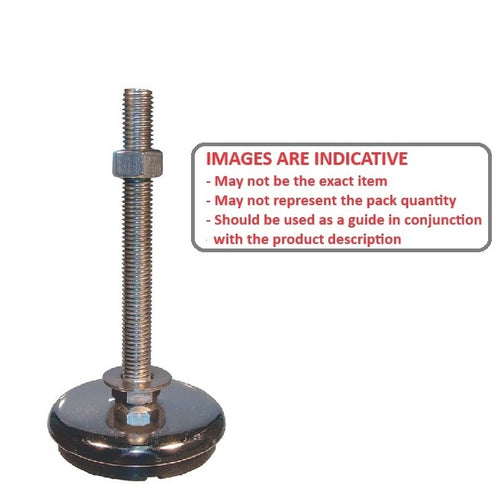

Mounts - Anti-Vibration - Zinc Plated SteelZinc Plated Steel Anti-Vibration Mounts. Designed with high grade nitrile rubber and zinc plated steel.
- Swivel movement plus or minus 7o for stable support on inclined floors.
- Nitrile rubber base helps ensure stability.
Product Data

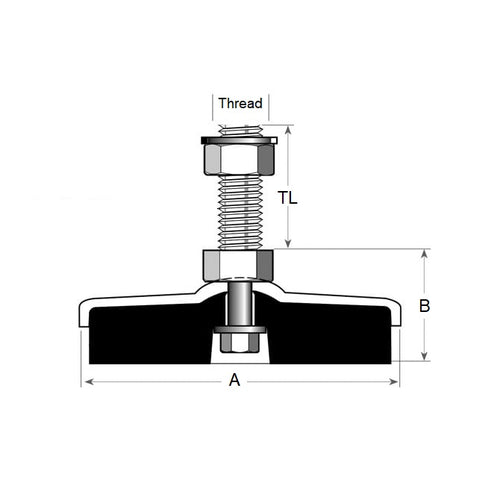

- Load Capacity : 453.6 Kg
- Thread 1/2-13 UNC (12.7mm)
- Thread Length 152.4 mm
- A Dia. 98.0 mm
- B base Ht. 23.9 mm
- Material Steel Zinc Plated
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SX-845
- SX845
