MPL-0454-S - Datasheet
MBA
Category Information

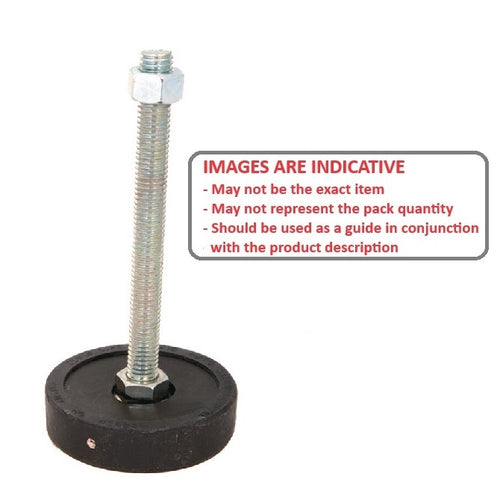

Mounts - Pivotal Levellers - With StudWith Stud Pivotal Levellers Mounts. Tough bonded neoprene. Patented pivotal leveler keeps equipment level and dampens an average 85% of noise. Adjusters.

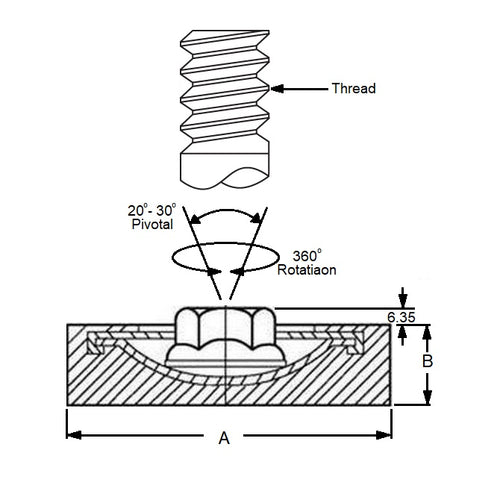

- The mounting nut which holds the stud is molded into the pad in a steel bracket and rotates freely permitting at least 6.35mm of leveling.
- Includes stud epoxied into the base mount.
Product Data
- Max Load : 453.6 Kg
- Base Diameter (A)
76.200
mm
(Equiv. 3 in.) - Base Height (B)
19.050
mm
(Equiv. 0.75 in.) - Thread Size 1/2-13 UNC (12.70mm)
- Thread Length 122.240
- Type Round
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- TPL540A
- TPL-540-A
