MPL-0454-P - Datasheet
MBA
Category Information

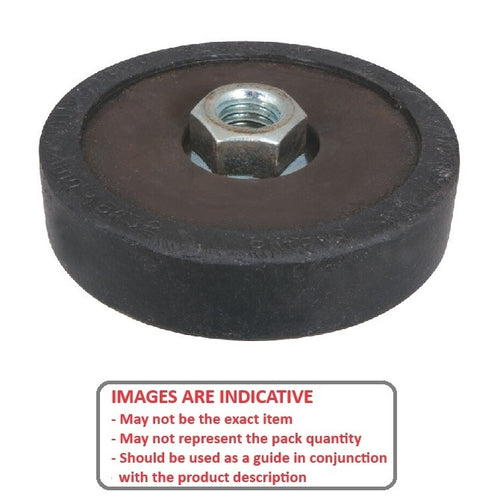

Mounts - Pivotal Levellers - Base Without StudBase Without Stud Pivotal Levellers Mounts. Tough bonded neoprene. Patented pivotal leveler keeps equipment level and dampens an average 85% of noise. Adjusters.
- The mounting nut which holds the stud is molded into the pad in a steel bracket and rotates freely permitting at least 6.35mm of leveling.
- No stud included so you can use your own custom stud.
Product Data
- Max Load : 453.6 Kg

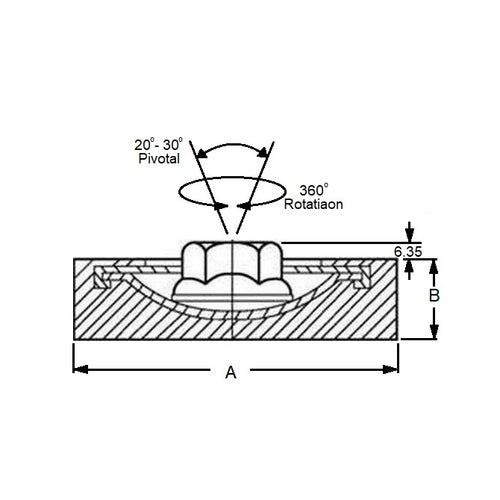

- Base Diameter (A)
76.200
mm
(Equiv. 3 in.) - Base Height (B)
19.050
mm
(Equiv. 0.75 in.) - Thread Size 1/2-13 UNC (12.70mm)
- Type Round
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 63965K63
- TPL540
- TPL-540
