MSF-064C-S3RP - Datasheet
MBA
Category Information

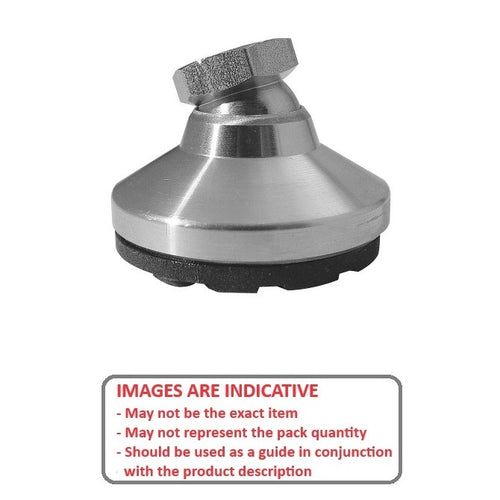

Mounts - Levelling Socket - Swivel - 303 Stainless - Rubber PaddedRubber Padded 303 Stainless Swivel Levelling Socket Mounts. Levelling adjusters. 15o swivel off centreline to adjust to uneven surfaces and level machine tools, electronic racks and benches.
- An expanded range may be available on special order. Please enquire.
- 303 Stainless Steel.
Product Data
- Thread Size (A) : 1/4-20 UNC (6.35mm)
- Base Diameter (D)
25.4
mm
(Equiv. 1 in.) - Foot Height (C)
17.8
mm
(Equiv. 0.701 in.) - Min. Thread Depth 7.9 mm
- Base Height (E) 3.81 mm
- Load Rating 450 Kg
- Pad Thickness 3.2 mm
- Pad Material Elastomer
- Hex Flats (B) 12.7 mm
- Material Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- MSF0450064C36
- LE6SS
- LE-6SS
