B-XL-0045-0064-PPB - Datasheet
MBA
Category Information

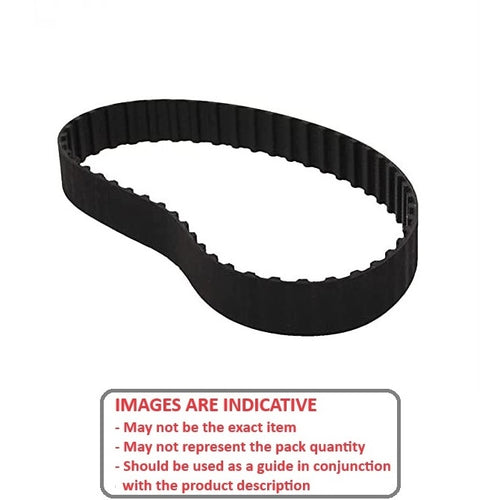

Belts - Inch Timing - 5.080mm Pitch XL - 6.4mm Wide - Single SidedSingle Sided 6.4mm Wide 5.080mm Pitch XL Inch Timing Belts. Standard Series Timing Belts 5.08mm or 0.2 inch (1/5 inch) pitch.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.
- Tooth Length (T) - 1.4mm
- Tooth Height (H) - 1.3mm
- Belt Height (W) - 2.3mm - Corner Radii ( r ) - 0.4mm
- Pitch (P) - 5.08mm (0.2 inch)
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 45
- Length
228.6
mm
(Equiv. 9 in.) - Width
6.4
mm
(Equiv. 0.252 in.) - Reinforcement Polyester
- Appearance Black
- Min Temperature (C) -18 Deg C
- Max Temperature (C) 66 Deg C
- Material Polyurethane with Polyester Cords
Product Compliance and Data
Additional Resources
Cross References
- Gates 90XL025UP
- Gates BXL00450060PP
- A6G3045025
- A6G3-045025
- A6G3M045060
