Miniature Bearings Australia
MCOM-0045-051 - Datasheet
MBA
Category Information
Mounts - CompressionCompression Mounts. Used for vertically applied loads to prevent the transmission of noise and vibration caused by rotation of unbalanced equipment.
- Made with durable oil and ozone resistant neoprene. No special tools required for installation.
Product Data

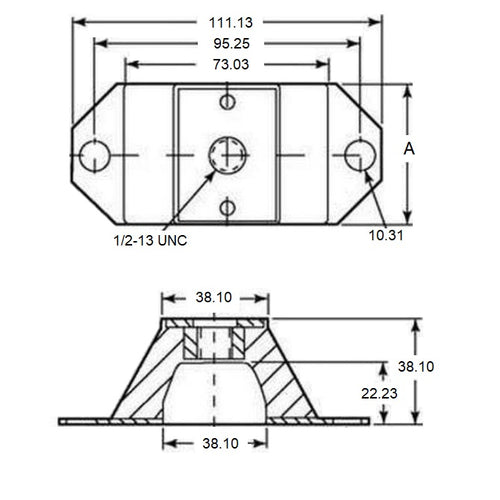

- Load Range : 45.359 Kg
- Width (A)
50.800
mm
(Equiv. 2 in.) - Overall Length
111.125
mm
(Equiv. 4.375 in.) - Height 38.100 mm
- Thread 1/2-13 UNC (12.700mm)
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- BCM100
- BCM-100
