MLM-254C-129-S3NY-2LH - Datasheet
MBA
Category Information

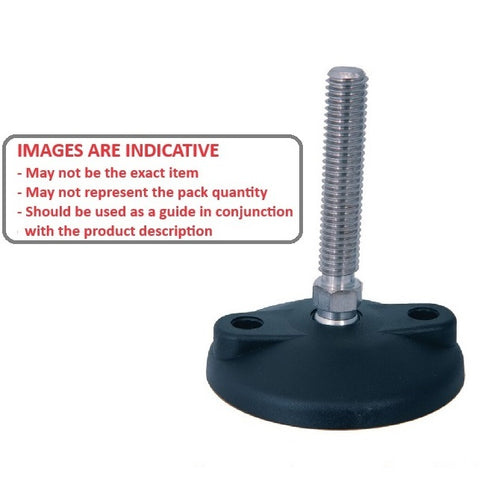

Mounts - Levelling Studded - Light Duty - Nylon - With Lag HolesWith Lag Holes Nylon Light Duty Levelling Studded Mounts. Levelling adjusters. Steel and stainless steel threads.
- An expanded range may be available on special order. Please enquire.
Product Data

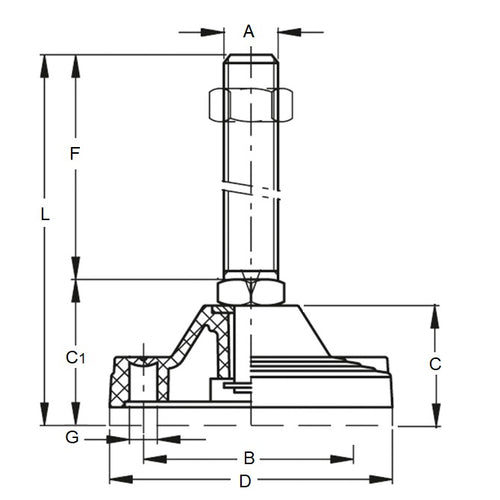

- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
122.9
mm
(Equiv. 4.839 in.) - Foot Height (C)
17.0
mm
(Equiv. 0.669 in.) - Thread Length (F) 129.0 mm
- Base Height (C) 60.96 mm
- Overall Height (L) 146.0 mm
- Load Rating 4490 Kg
- Swivel Angle 2 °
- Lag Hole Diameter 13.208 mm
- Distance Between Lags 98.55 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM4490254CLNS32
- MLM0190254CNS32
- RL-1703-S
- RL1703S
