MLM-254C-180-S3NY-LA2LH - Datasheet
MBA
Category Information

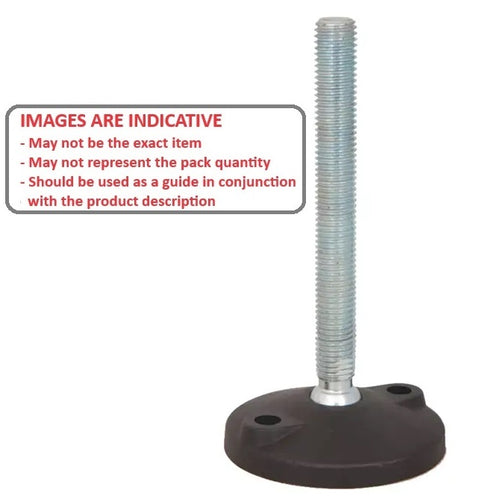

Mounts - Levelling Studded - Light Duty - Nylon - Loc A Lign - With Lag HolesWith Lag Holes Loc A Lign Nylon Light Duty Levelling Studded Mounts. Adjusters.
- An expanded range may be available on special order. Please enquire.
Product Data
- Thread Size (A) : 1-8 UNC (25.4mm)
- Base Diameter (D)
122.9
mm
(Equiv. 4.839 in.) - Foot Height (C)
14.5
mm
(Equiv. 0.571 in.) - Thread Length (F) 180.3 mm
- Base Height (E) 72.4 mm
- Overall Height 252.73 mm
- Load Rating 4490 Kg
- Distance Between Lags 5 mm
- Lag Hole Diameter 13.208 mm
- 98.55
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- MLM0180254CNS32
- MLM4490254CL2NS32
- RL2225S
- RL-2225-S
