GBL-045-030-120-A - Datasheet
MBA
Category Information

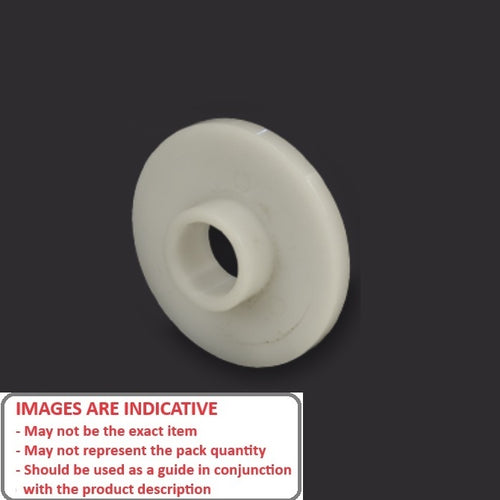

Gears - BlanksBlanks Gears. Blanks for cutting gears and pulleys and friction drives.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

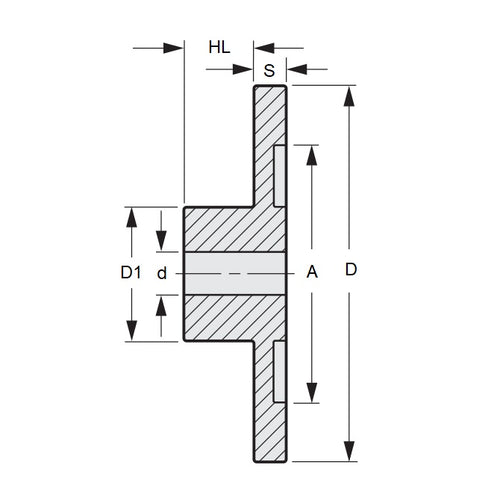

- OD (D)
:
44.800
mm
(Equiv. 1.764 in.) - Face Width (S)
3.000
mm
(Equiv. 0.118 in.) - Bore (d)
12.000
mm
(Equiv. 0.472 in.) - A Diameter 29.000 mm
- Hub Diameter (D1) 19.000 mm
- Hub Projection (HL) 6.50 mm
- Locking Type None
- Material Acetal
Product Compliance and Data
Additional Resources
Cross References
- A 1M15M345
- A1M15M345
