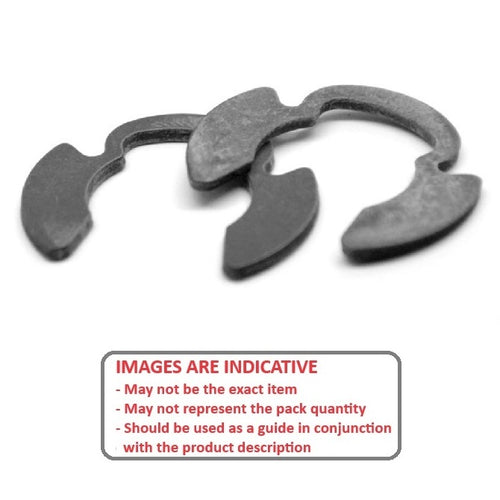

ECL-0376-0445-C-KR - Datasheet

MBA

Product Data

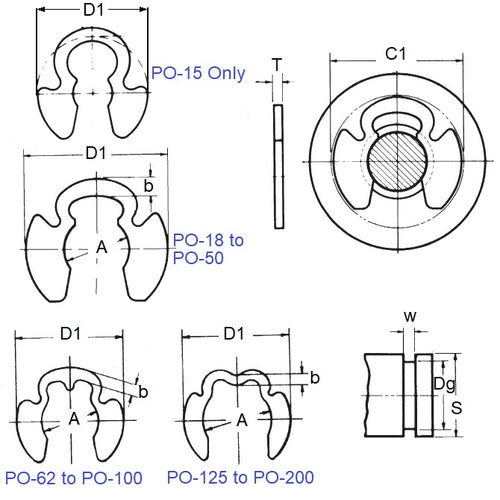

• Minimum Rec. Shaft Dia (S) : 44.45 mm
  (Equiv. 1.75 in.)
• Groove Dia. (Dg) 37.59 mm _{+/- 0.381}
  (Equiv. 1.48 in.)
• Clip Thickness (T) 3.18 mm _{+/ - 0.102}
  (Equiv. 0.125 in.)
• Clip OD Loose (D1) 67.31 mm
• Groove Width (W) 3.53 mm
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Circlips & E-Clips Catalogue
• Snap Rings Catalogue
• Stainless Steel Retaining Ring Material

Cross References

• Waldes 5304-175
• 98420A175
• NoCor PO-175
• Rotor Clip PO-175
• PO175
• 5304175
