COL-04445-076-16-HG-CS - Datasheet
MBA
Category Information

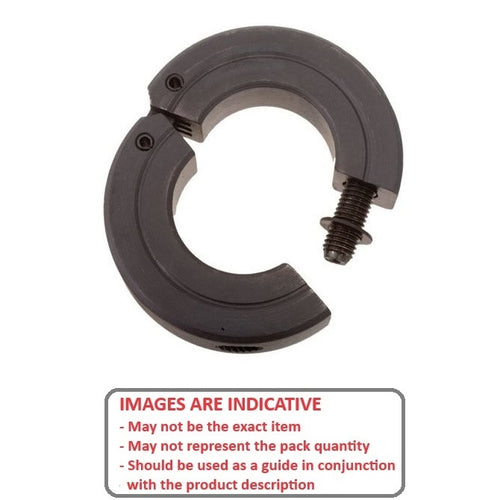

Collars - Shaft - Hinged - SteelSteel Hinged Shaft Collars. Precision machined. Convenient easy-to-assemble design. Steel 12L14 (9SMn Pb36)
- Same axial load handling capabilities as standard two piece collars.
- Captive clamp screw eliminates lost screws.
- The collars have a smooth I.D., O.D. & sides with no protruding pins or screws.
- Easily Machinable / Open Completely.
- Non-marring / Use on hardened shafts / Use on tubing / Use on split hubs.
Product Data

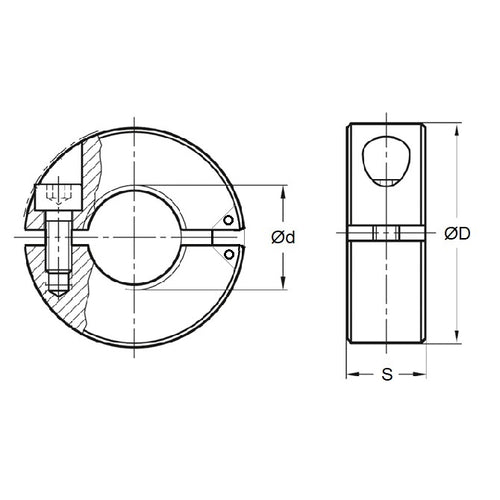

- Suitable Shaft Size (d)
:
44.450
mm
(Equiv. 1.75 in.) - Outside Diameter (D)
76.20
mm
(Equiv. 3 in.) - Overall Width (S)
15.9
mm
(Equiv. 0.626 in.) - Screw Size 5/16-24 UNF
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- 57145K85
- CTC-412
- CTC412
