FRB-220RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

  • Vibration-damping component with a female (internal) threaded hole, which screws onto a bolt or screw to be securely attached.
  • Used to protect equipment by absorbing shock, reducing noise, preventing sliding, and minimizing vibration in mechanical, industrial, and automotive applications.

Product Data

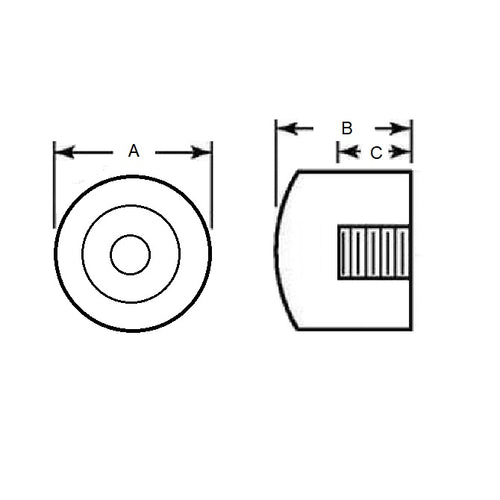

  • Diameter (A) : 44.450 mm
    (Equiv. 1.75 in.)
  • Height (B) 41.275 mm
    (Equiv. 1.625 in.)
  • Thread 5/8-18 UNF (15.88mm)
  • Thread Length 15.875 mm
  • End Curved
  • Durometer 70A
  • Colour Black
  • 22.225
  • Material Polyurethane
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • 9546K56
    View full details

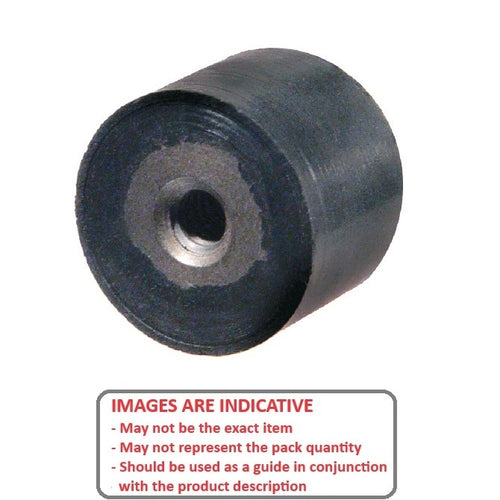

    FRB-220RSDiagramFRB-220RSImage
