FRB-218RS - Datasheet

MBA

Category Information

Bumpers - Cylindrical Female Thread

Cylindrical Female Thread Bumpers. With steel core.

    Product Data

    • Diameter (A) : 44.450 mm
      (Equiv. 1.75 in.)
    • Height (B) 41.275 mm
      (Equiv. 1.625 in.)
    • Thread 5/8-11 UNC (15.88mm)
    • Thread Length 15.875 mm
    • End Curved
    • Durometer 70A
    • Colour Black
    • 22.225
    • Material Polyurethane
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 9546K83
      View full details

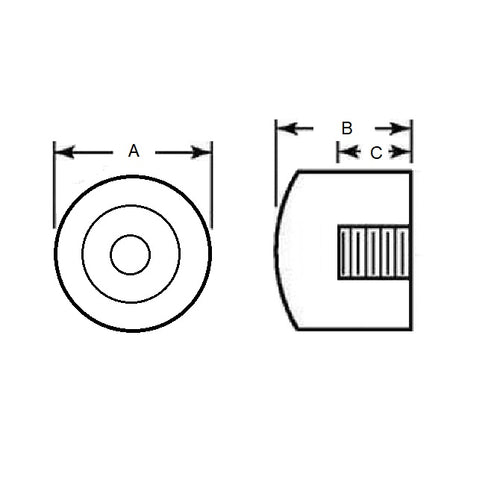

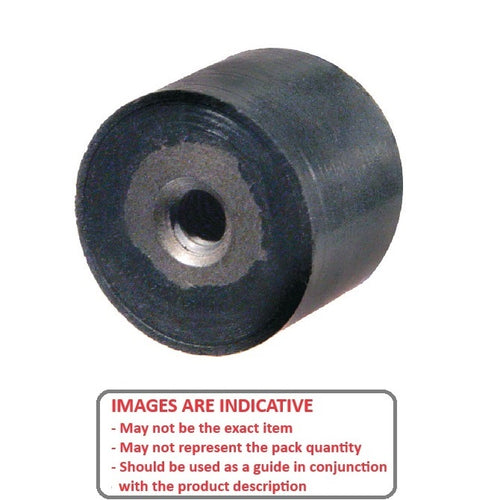

      FRB-218RSDiagramFRB-218RSImage
