FRB-18RS - Datasheet
MBA
Category Information

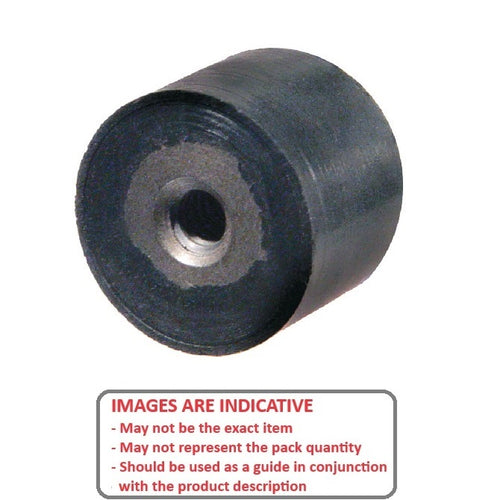

Bumpers - Cylindrical Female ThreadCylindrical Female Thread Bumpers. With steel core.
- Vibration-damping component with a female (internal) threaded hole, which screws onto a bolt or screw to be securely attached.
- Used to protect equipment by absorbing shock, reducing noise, preventing sliding, and minimizing vibration in mechanical, industrial, and automotive applications.
Product Data

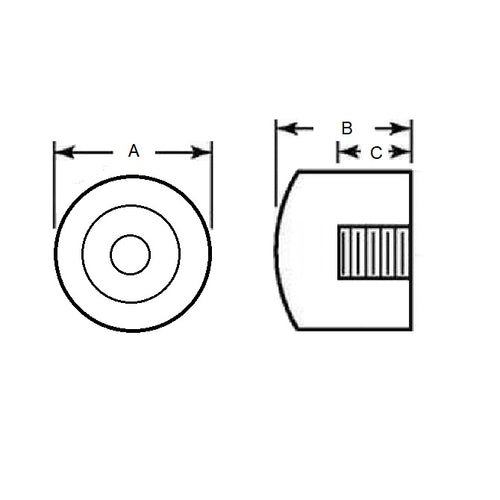

- Diameter (A)
:
44.450
mm
(Equiv. 1.75 in.) - Height (B)
41.275
mm
(Equiv. 1.625 in.) - Thread 5/8-11 UNF (15.88mm)
- Thread Length 15.875 mm
- End Curved
- Durometer 70A
- Colour Black
- 22.225
- Material Neoprene Rubber
Product Compliance and Data
Additional Resources
Cross References
- 9546K73
