FRB-102RS - Datasheet
MBA
Category Information

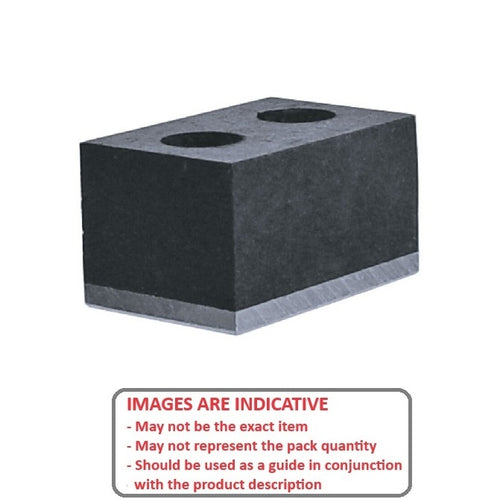

Bumpers - RectangleRectangle Bumpers. This is the main category in this series
- Rectangular shape bumpers, used to provide a protective cushion, prevent slipping, dampen vibrations, or absorb shock.
- Commonly used for furniture, electronics, and industrial equipment. Can be attached using adhesive, screws, or other mounting hardware.
Product Data

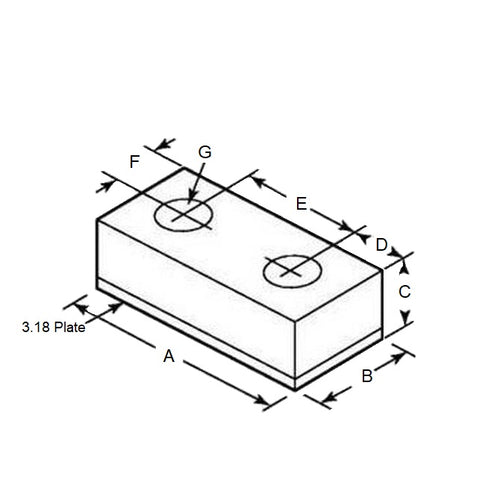

- Length (A) : 44.450 mm
- Width (B) 25.400 mm
- Height (C) 44.450 mm
- Length Centre Hole (D) 9.525 mm
- Distance Between Holes (E) 25.400 mm
- Width Centre Hole (F) 12.700 mm
- Hole Size (G) 6.350 mm
- No. of Holes 2
- Durometer 80A
- Material Neoprene Rubber
