FRB-550RS - Datasheet
MBA
Category Information

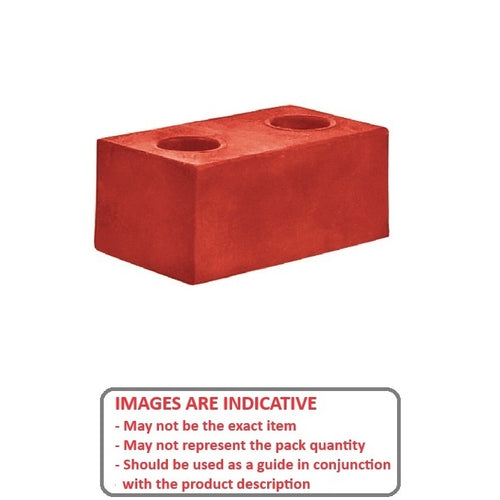

Bumpers - Square and Rectangular - Steel Plated - UrethaneUrethane Steel Plated Square and Rectangular Bumpers. With drilled and counterbored holes for mounting. Urethane bonded to steel plate.
Product Data

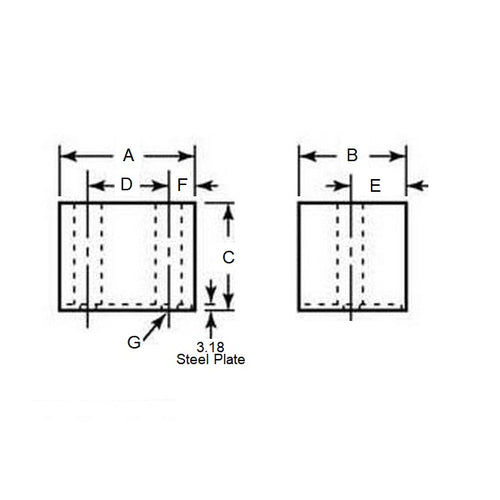

- Length (A)
:
44.450
mm
(Equiv. 1.75 in.) - Width (B)
25.400
mm
(Equiv. 1 in.) - Height (C)
19.050
mm
(Equiv. 0.75 in.) - Distance Between Holes (D) 25.400 mm
- Length Centre Hole (F) 9.525
- Hardness 80A
- No. of Holes 2
- Hole Size (G) 6.350
- Width Centre Hole (E) 12.700 mm
- Material Polyurethane
