NCF60RS - Datasheet

MBA

Category Information

Cam Followers - Bronze Bushing Self Lubricating

Bronze Bushing Self Lubricating Cam Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 44.450 mm
      (Equiv. 1.75 in.)
    • Length 69.850 mm
      (Equiv. 2.75 in.)
    • Thread (F) 3/4-16 UNF
    • Thread Length (E) 22.225 mm
    • Roller Width (B) 25.400 mm
    • Material Steel and Bronze
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • NCF-60
      • NCF60
      View full details

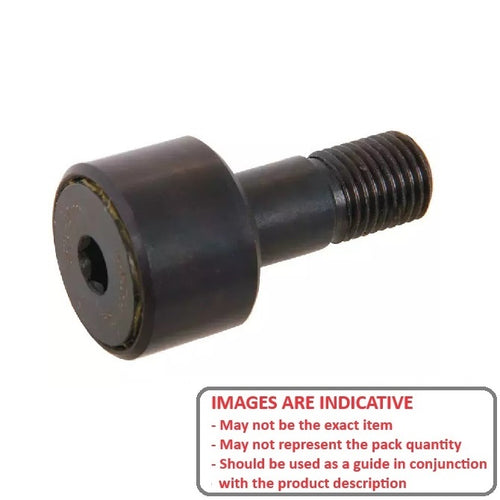

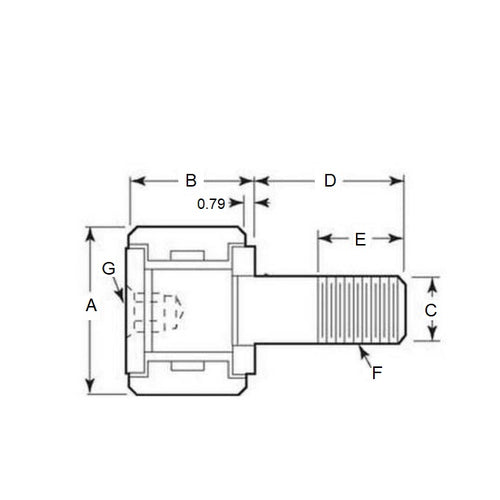

      NCF60RSDiagramNCF60RSImage
