CCF470RS - Datasheet

MBA

Category Information

Roller Followers - Standard

Standard Roller Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 44.450 mm
      (Equiv. 1.75 in.)
    • Overall Width (D) 26.988 mm
      (Equiv. 1.063 in.)
    • Bore (B) 12.700 mm
      (Equiv. 0.5 in.)
    • Width (C) 25.400 mm
    • E 31.750 mm
    • Dynamic Load Rating 2599.084 kg
    • Static Load Rating 6713.167 kg
    • Material Stainless Steel
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • 7796K85
      • CCF470
      • CCF-470
      View full details

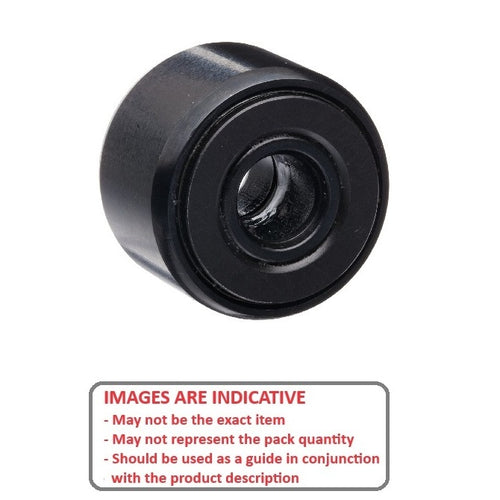

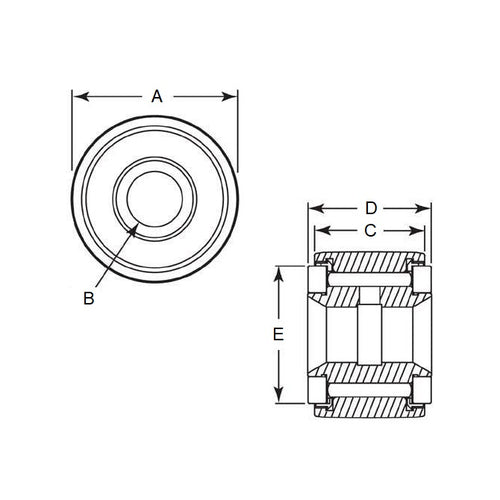

      CCF470RSDiagramCCF470RSImage
