P-XL-043-200C - Datasheet
MBA
Category Information

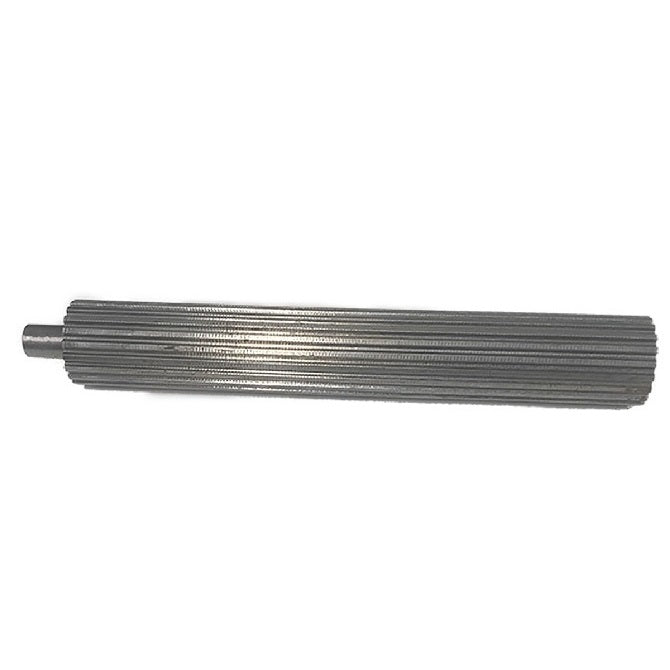

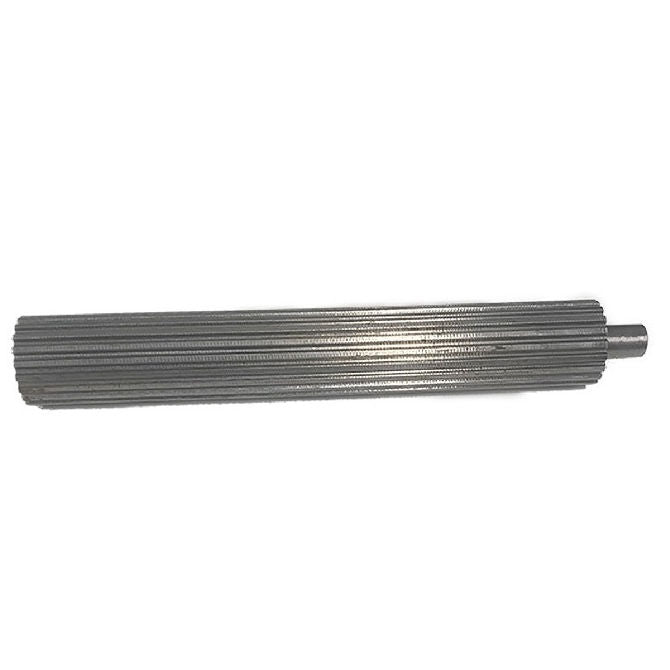

Pulleys - Inch Timing Stock - 5.080mm Pitch XL - Carbon SteelCarbon Steel 5.080mm Pitch XL Inch Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
Product Data
- Number of Teeth : 43
- Min. Usable Length (L)
200.0
mm
(Equiv. 7.874 in.) - Pitch Diameter (PD)
69.50
mm
(Equiv. 2.736 in.) - Outside Diameter (OD) 69.01 mm
- Shank Diameter (D1) 19.05 mm
- Shank Length (Sl) 19.1 mm
- Material Carbon Steel
Product Compliance and Data
Additional Resources
Cross References
- Gates 43XL-PS8S
- 43XLPS8S
