P-030G-042-200A - Datasheet
MBA
Category Information

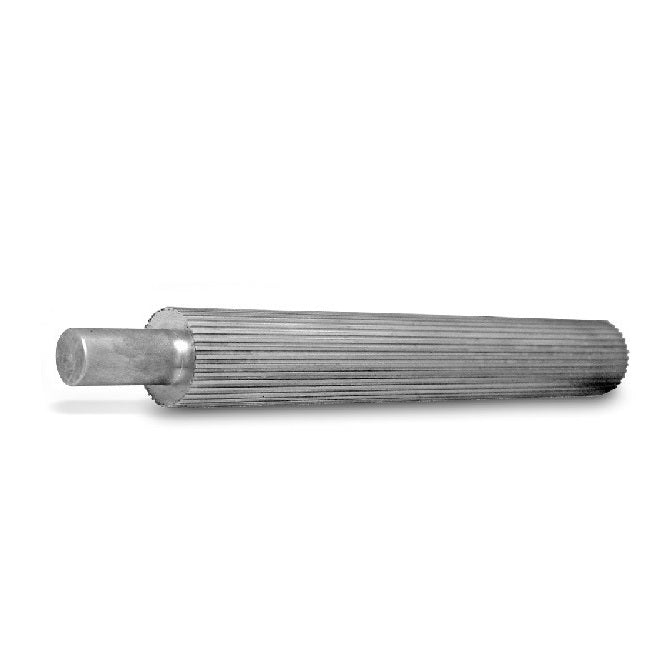

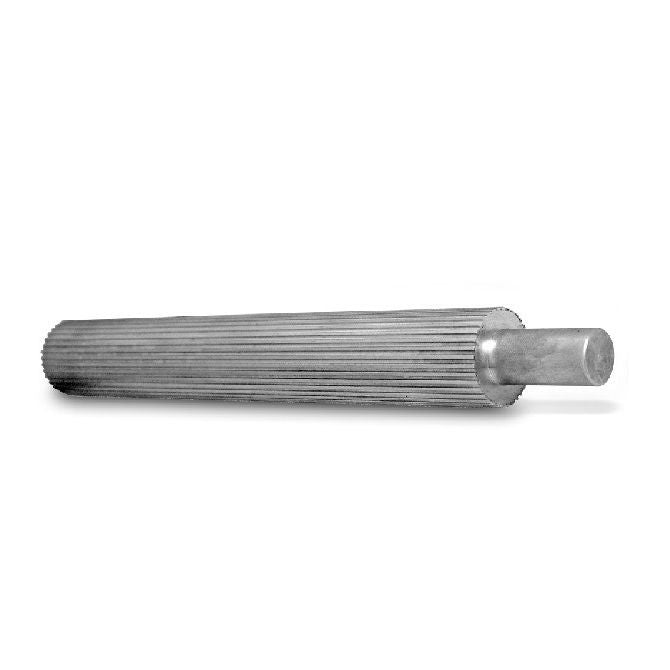

Pulleys - Metric Timing Stock - 3.000mm Pitch - GT AluminiumGT Aluminium 3.000mm Pitch Metric Timing Stock Pulleys. For manufacture of timing pulleys or applications requiring multiple belts from a single drive. Use with GT2 or GT3 type belts.
- Timing pulleys combined with timing belts, provide power transmission without slippage.
- Timing pulley stock sizes are ready to machine lengths of timing pulley material, available in aluminium, carbon steel, and special order stainless steel.
- After machining, the pulleys can be capped with standard flanges from our timing pulley flange range.
- Use with GT2 or GT3 type belts.
Product Data
- Number of Teeth : 42
- Min. Usable Length (L)
200.0
mm
(Equiv. 7.874 in.) - Pitch Diameter (PD)
40.10
mm
(Equiv. 1.579 in.) - Outside Diameter (OD) 39.35 mm
- Shank Diameter (D1) 12.70 mm
- Shank Length (Sl) 19.0 mm
- Material Aluminium
Product Compliance and Data
Additional Resources
Cross References
- Gates 42-3P-PS8A
- A6A52M042GT20
- 423PPS8A
