ACE4RS - Datasheet
ACE
Category Information

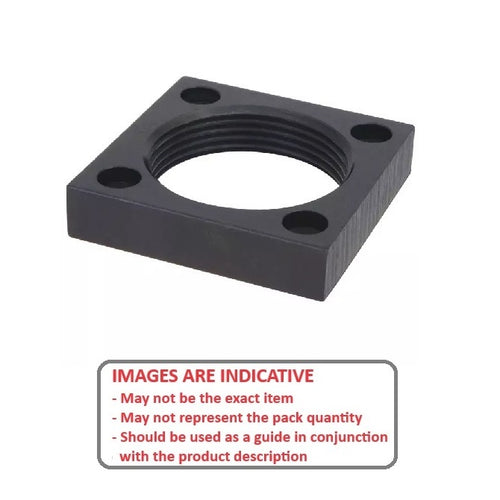

Shock Absorbers - Accessories - Mounting BlocksMounting Blocks Accessories Shock Absorbers. This is the main category in this series
Product Data

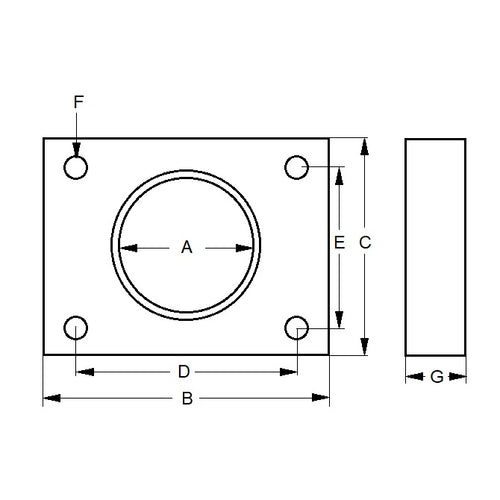

- Suitable Thread (A) : 3/4-16 UNF (19.05mm)
- Length (B)
50.80
mm
(Equiv. 2 in.) - Width (C)
38.10
mm
(Equiv. 1.5 in.) - Height (G) 15.75 mm
- Bolt Centres (D/E) 38.10 / 28.45 mm
- More Information For more information please contact us.
Product Compliance and Data
Additional Resources
Cross References
- ACE-4
- ACE4
