B-050H-0042-0150-NFB - Datasheet
MBA
Category Information

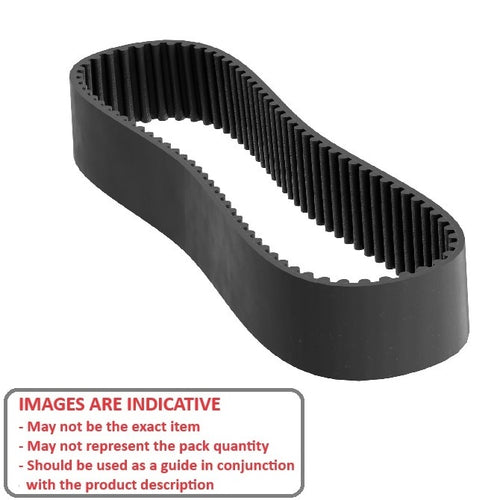

Belts - Timing 5.000mm Pitch - HTD - 15mm Wide - Single SidedSingle Sided 15mm Wide HTD Timing 5.000mm Pitch Belts. HTD Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

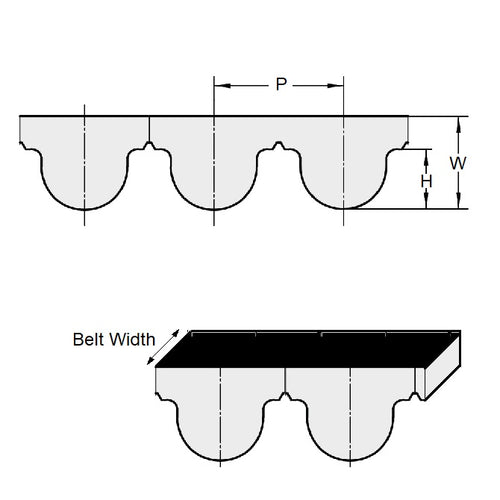

- Tooth Length (T) - 3.05mm
- Tooth Height (H) - 2.08mm
- Belt Height (W) - 3.8mm
- Pitch (P) - 5mm
Product Data
- Number of Teeth : 42
- Length
210
mm
(Equiv. 8.268 in.) - Width
15.0
mm
(Equiv. 0.591 in.) - Reinforcement Fibreglass
- Appearance Black
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-HTBN210H5M-150
- CHTBN210H5M150
