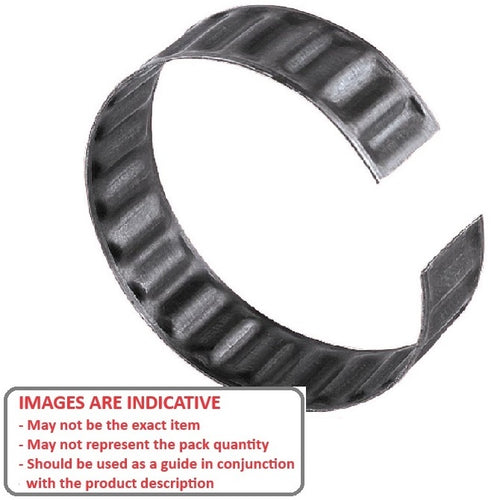

TR-420-440-130-S3 - Datasheet
MBA
Category Information
Retaining Rings - ToleranceTolerance Retaining Rings. Tolerance rings allow looser tolerances for assembly of parts such as bearings, pulleys and gears.
- An expanded range may be available on special order. Please enquire.
- Allows looser tolerances of components.
- Ideal for mounting ball bearings.
- Useful for salvaging worn parts.
- Permits low cost assembly by eliminating the need for conventional fasteners.
- Use Torque Transfer figures for gears and pulleys. Non torque transfer figures are for bearing applications.
Product Data

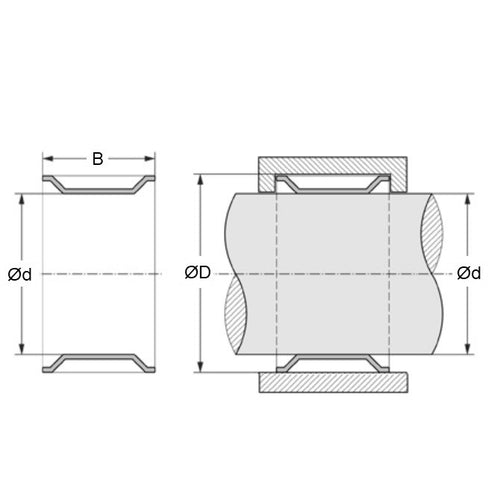

- Inner Part OD (d)
:
42.00 to 41.95
mm
(Equiv. 1.654 in.) - Housing ID (D)
43.97 to 43.87
mm
(Equiv. 1.731 in.) - Ring Width (B)
13.00
mm
(Equiv. 0.512 in.) - Outer Part ID (DT) mm 43.69 to 43.59 For Torque Transfer
- Max. Design Torque 79.66 N.m
- Style For bearing OD
- Max. Radial Load 5440 N
- Max. Design Thrust 3795 N
- Material Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
