NCF55RS - Datasheet

MBA

Category Information

Cam Followers - Bronze Bushing Self Lubricating

Bronze Bushing Self Lubricating Cam Followers. This is the main category in this series

    Product Data

    • Diameter (A) : 41.275 mm
      (Equiv. 1.625 in.)
    • Length 60.325 mm
      (Equiv. 2.375 in.)
    • Thread (F) 5/8-18 UNF
    • Thread Length (E) 19.050 mm
    • Roller Width (B) 22.225 mm
    • Material Steel and Bronze
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • NCF-55
      • NCF55
      View full details

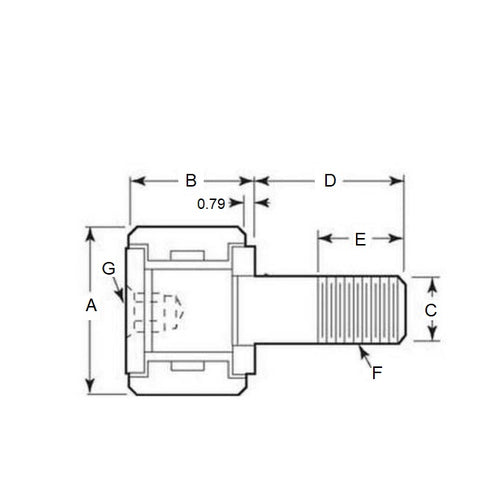

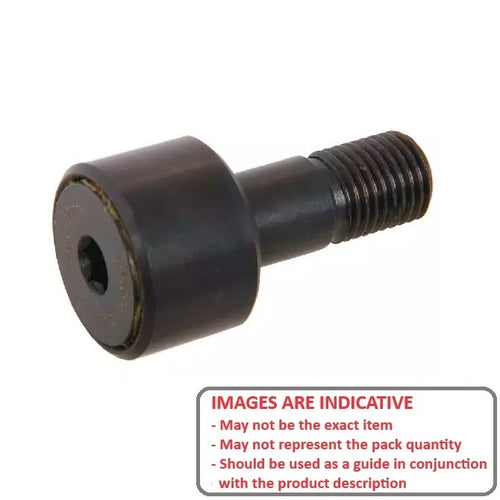

      NCF55RSDiagramNCF55RSImage
