P-030G-040-090FF-AL-G-064 - Datasheet

MBA

Category Information

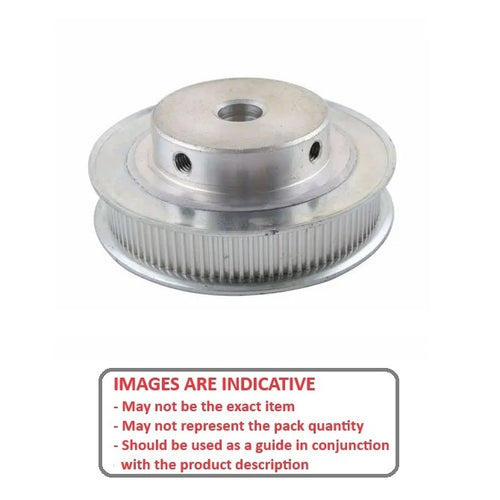

Pulleys - Metric Timing - 3.000mm Pitch - GT - 9mm Wide - Metallic - Through

Through Metallic 9mm Wide GT 3.000mm Pitch Metric Timing. Timing Pulleys to suit GT 3.000mm Pitch Timing Belts 9mm Wide. Use with GT2 or GT3 type belts.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • Timing pulleys are toothed pulleys used with timing belts to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
  • Some uses for timing pulleys include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
  • Finished through bore ready for assembly
  • Set screw locking

Product Data

  • Number of Teeth : 40
  • Max Belt Width 9.00 mm
    (Equiv. 0.354 in.)
  • Bore (d) 6.350 mm
    (Equiv. 0.25 in.)
  • Bore Type Finished
  • Locking Type Set Screw

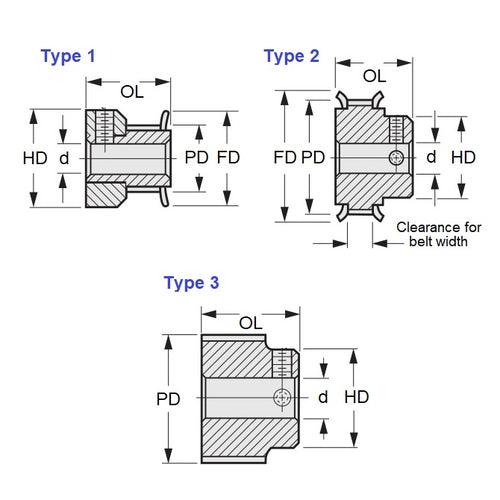

  • Type 2
  • Pitch Dia. (PD) 38.18 mm
  • Flange Diameter (FD) 41.3 mm
  • Overall Length 21.4 mm
  • Hub Diameter (HD) 29.2
  • Material Aluminium
Country of Origin: IN

Product Compliance and Data

Additional Resources

Cross References

  • 3764N139
  • Gates 40-3P09-6FA3
  • A6A53-040DF0908
  • A6A53040DF0908
  • 403P096FA3
