Miniature Bearings Australia
S6008-2RS-ECO - Datasheet
ECO
Category Information
Bearings - Single Row Ball - Unflanged - Precision - 440C Stainless440C Stainless Precision Unflanged Single Row Ball Bearings. Stainless steel radial ball bearings
- Single row radial ball bearings are arguably the most common, widely used type of bearing. They consist of an inner ring, an outer ring, a set of balls, and a cage that retains the balls in a circular path.
- Single row radial ball bearings are commonly used in a wide range of applications, including electric motors, fans, pumps, gearboxes, agricultural equipment, appliances, and automotive components.
- They are versatile, cost-effective bearings that provide reliable support for radial loads and some axial loads in one direction. An expanded range may be available on special order. Please enquire.
- Standard single row radial ball bearings.
Product Data

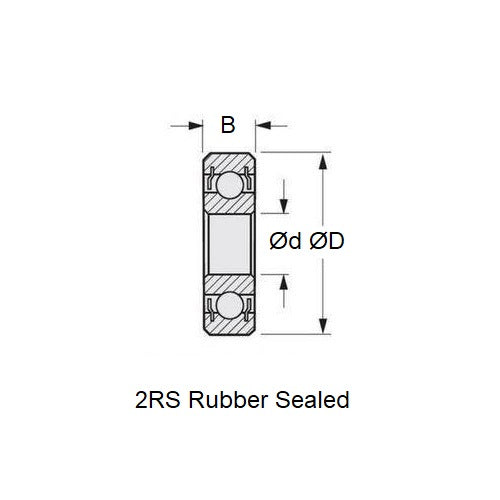

- ID (d)
:
40.000
mm
(Equiv. 1.575 in.) - OD (D)
68.000
mm
(Equiv. 2.677 in.) - Width (B)
15.000
mm
(Equiv. 0.591 in.) - Precision Grade Economy
- Closure Type 2RS
- Bearing Type Radial
- Material Stainless Steel AISI 440C
- Lubrication Type Grease
- Lubrication Name Standard Unspecified
- Basic Part 6008
- Limiting Speed 6460
- Cage Type Standard
- Static Load Rating KGf 1117.2
- Dynamic Load Rating KGf 1625.4
- Radii 1.00 mm
- Inner Shoulder (UI) 49.20mm
- Outer Shoulder (UO) 62.50 mm
- Number of Balls 12
- Clearance ECO (6 to 46)
- Precision Grade ECO
- Closure Type 2RS
- Max Temperature 80 Deg. C
