WLB040-062-20-BI - Datasheet

MBA

Category Information

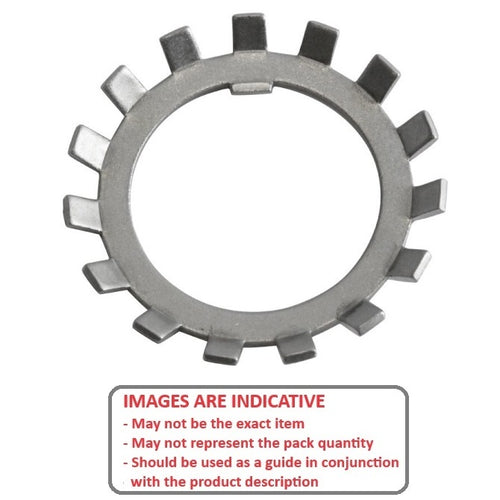

Washers - Lock - Tabbed - for Bearing Locknuts

for Bearing Locknuts Tabbed Lock Washers. This category includes equivalents to AW, W, TW, MB, WH and WT types.

  • Lock washers are available in many different materials and types, including tabbed, split and toothed. An expanded range may be available on special order. Please enquire.
  • Designed to prevent nuts and bolts from loosening due to vibration or torque by creating tension and friction within the bolted joint, effectively securing the connection and preventing unwanted rotations.
  • Dimensions are nominal and may vary between batches.
  • For use with bearing lock nuts

Product Data

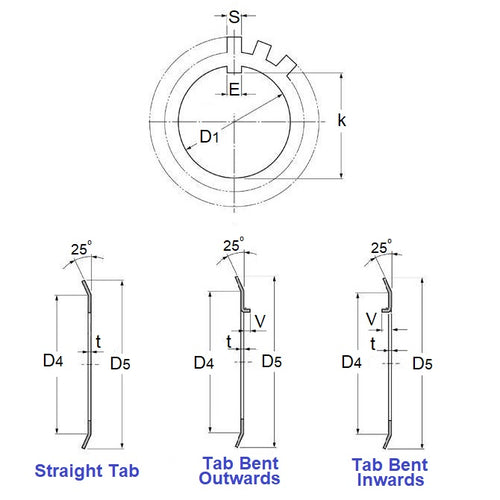

  • Approximate ID (D1) : 40.00 mm
    (Equiv. 1.575 in.)
  • Approx OD (D5) 61.52 mm
    (Equiv. 2.422 in.)
  • Tabs 15 Nr.
  • Inner Face (D4) 51.6 mm
  • thickness (t) 2.0 mm
  • Matching Locknut NH-08
  • Inner Tab Type Bent Inwards
  • Series WH / Heavy Duty
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • WH08
