Miniature Bearings Australia

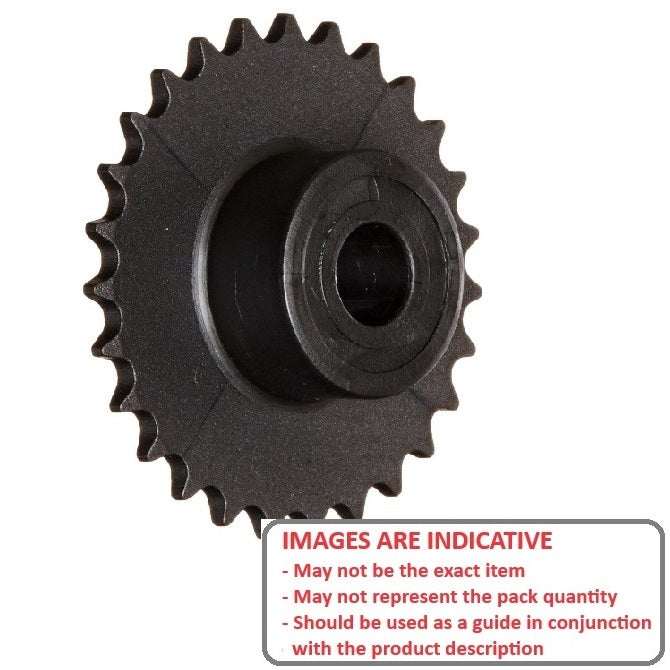

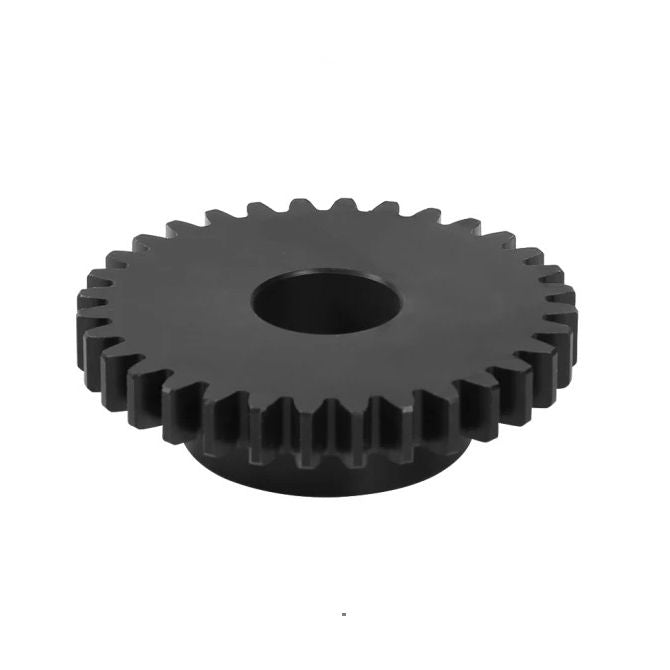

SP1-031-015B-040-060-AB - Datasheet
MBA
Category Information
Sprockets - Roller Chain - Simplex - 3.12 x 1.47mm Plastic3.12 x 1.47mm Plastic Simplex Roller Chain Sprockets. Nylon - Acetal - With and without bore inserts.
- This category will be discontinued when the remaining items are sold.
- All items are priced to quit.
- Backorders or orders for previously listed items in the category may still be possible - please enquire.
- Match with series 3.12mm miniature plastic chain
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.
- Number of Teeth : 40

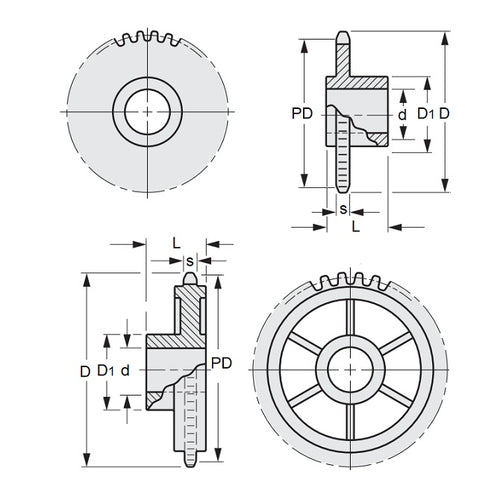

- PCD
39.67
mm
(Equiv. 1.562 in.) - Hub Diameter (D1)
9.50
mm
(Equiv. 0.374 in.) - Overall Width (E) 7.92 mm
- Standard Number Non Standard
- Type / Rows Type 2
- Bore (d) 6.000 mm
- Locking Method No Locking
- Material Acetal
Product Compliance and Data
Additional Resources
Cross References
- A 6M 7M124006
- A6M7M124006
