B-050H-0040-0300-NFB - Datasheet
MBA
Category Information

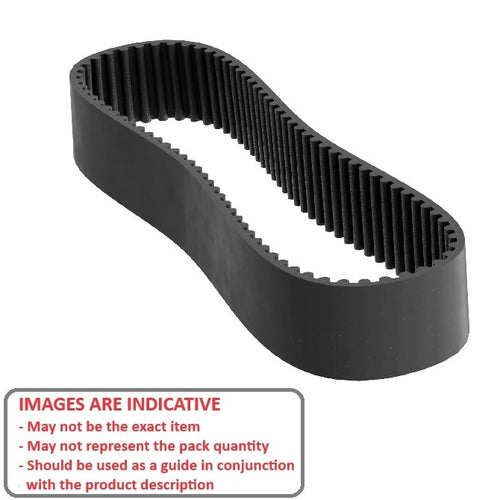

Belts - Timing 5.000mm Pitch - HTD - 30mm Wide30mm Wide HTD Timing 5.000mm Pitch Belts. HTD Series Metric Timing Belts.
- Timing belts combined with timing pulleys, provide power transmission without slippage.
- Timing belts are toothed belts used to synchronize the movement of different mechanical components, ensuring precise timing and coordination.
- Some uses for timing belts include 3D printers, CNC machines, robotics and automation components, textile machinery, office equipment such as scanners and copiers, and medical devices requiring precise movement control.
- Breaking strength is not indicative of working strength. Belts working load should be rated at approximately 1/15th of their ultimate breaking strength.

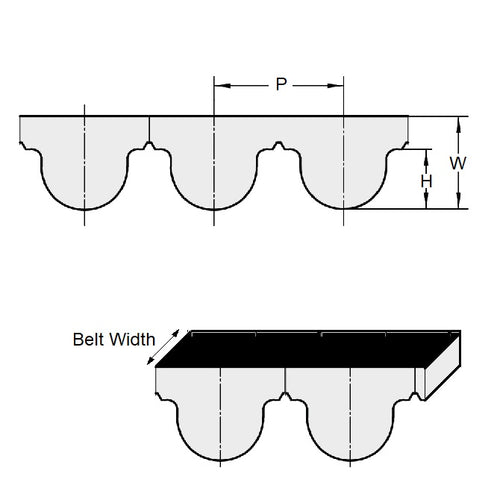

- Tooth Length (T) - 3.05mm
- Tooth Height (H) - 2.08mm
- Belt Height (W) - 3.8mm
- Pitch (P) - 5mm
Product Data
- Number of Teeth : 40
- Length
200
mm
(Equiv. 7.874 in.) - Width
30.0
mm
(Equiv. 1.181 in.) - Reinforcement Fibreglass
- Appearance Black
- Min Temperature (C) -30 Deg C
- Max Temperature (C) 90 Deg C
- Material Nylon Covered Neoprene with Fibreglass Cords
Product Compliance and Data
Additional Resources
Cross References
- Misumi C-HTBN200H5M-300
- CHTBN200H5M300
