RKC-2001RS - Datasheet
MBA
Category Information

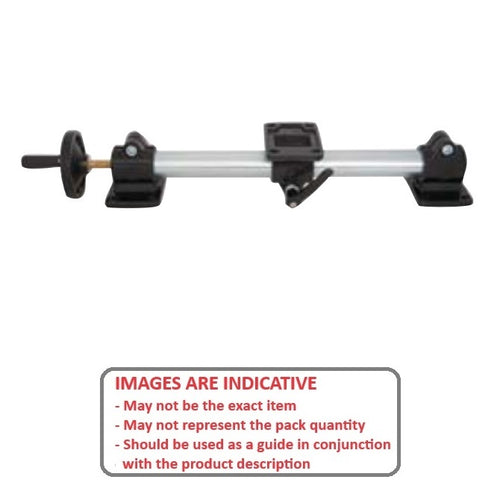

Linear - Positioner UnitPositioner Unit Linear. Effective way to position heavy loadsquickly and easily. Single pin unit offers high rigidity with small deflection.
Product Data
- Tube Diameter : 40 mm
- A 85 mm
- B 60 mm
- C 44 mm
- D 38 mm
- E 12 mm
- F 500 mm
- Travel 270 mm
- Load Capacity (X) 950 Nm
- Load Capacity (Y) 1000 Nm
- G 100 mm
- H 28 mm
