NAST40ZZUUR - Datasheet

MBA

Category Information

Rollers - Track - With Inner Race

With Inner Race Track Rollers. This is the main category in this series

    Product Data

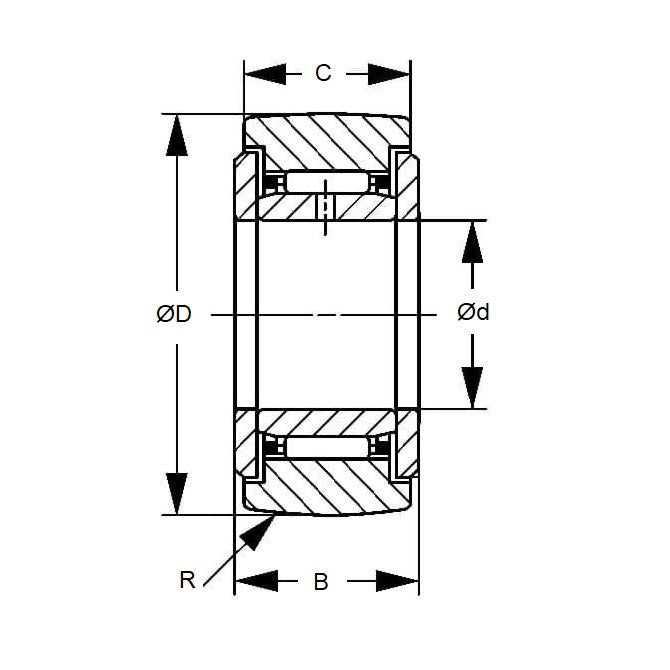

    • ID (d) : 40.00 mm
    • O.D. (D) 80.00 mm
    • Width (C) 25.80 mm
    • Inner Ring Width (B) 26.00 mm
    • OD Type Radius (500mm)
    • Dynamic Load Rating 3660.00 kgf
    • Static Load Rating 6230.00 kgf
    • Closures Shields with Seal
    • Material Steel
    Country of Origin: JP

    Product Compliance and Data

    Additional Resources

      Cross References

      • Nachi® NAST-40-ZZUUR
      • IKO NAST40-ZZUUR
      • NAST40ZZUUR
